1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market
sectors, including (but not limited to): automotive, medical,
building automation, white goods, digital signage, security,
transportation and industrial.

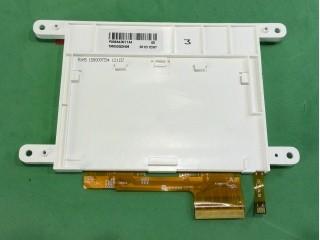

2. TIANMA TM050QDH06 Mechanical Features
| Screen Size : | 5.0" |
|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
|---|
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.0529×0.1587 mm | 0.1587×0.1587 mm [160PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
|---|
| 101.568×76.176 mm | - | 113.6×88.4 mm | 8.1/10.0 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
|---|
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
|---|
| 80.0±4.0g | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right slugs |
|---|
3. TIANMA TM050QDH06 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 6 o'clock | 70/70/70/60 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
|---|
| 7092K | 16.7M (6-bit + Dithering) | X:0.305; Y:0.316 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
|---|
| 50% | 70% | 52% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM050QDH06 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|
| WLED | Edge light type | 50K(Typ.) | 3S5P | Array | - |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
|---|
| 9.6V (Typ.) | 100/125mA (Typ./Max.) | 0.96/1.25W (Typ./Max.) |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
|---|
| No | FPC | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
|---|
| | 1 pcs | 4 pins | 1.0 mm | BLE-4PINS-CNNA |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
