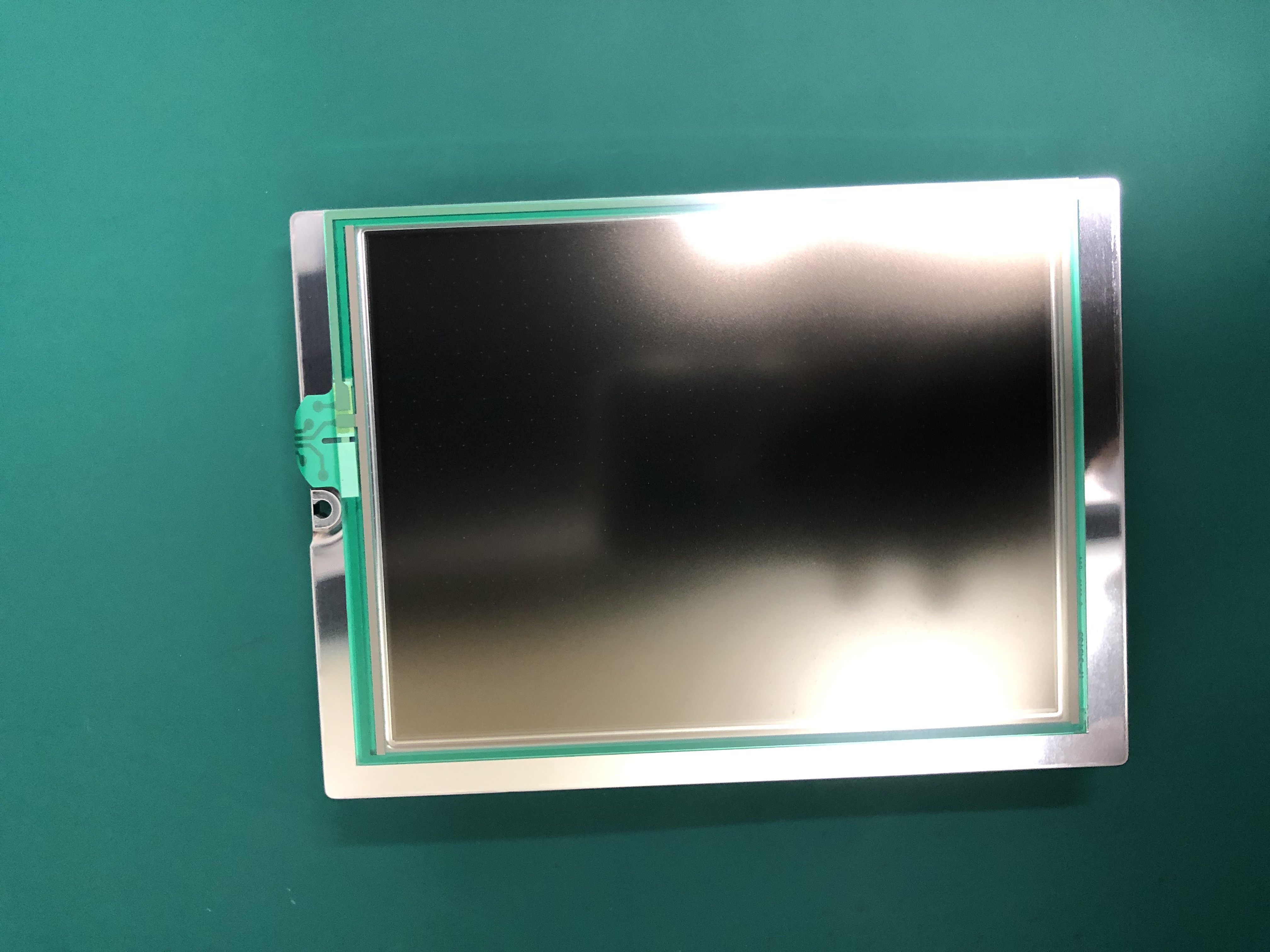

640x480 5.7" 640cd/m² TFT LCD Panel TCG057VGLCT-H51 80/80/80/80 (Typ.)(CR≥5)

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2.Kyocera TCG057VGLCT-H51-S Mechanical Details:

Pixel Features :	Resolution	640(RGB)×480, VGA	Dot Pitch(mm)	0.060×0.180 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.180×0.180 (H×V) [141PPI]
Mechanical Size :	Active Area(mm)	115.2(H) × 86.4(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	144(H) × 104.8(V)	Depth(mm)	14.8±0.8
Outline Features :	Form Style	Flat Rectangle	Outline Shape	-
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Touch Panel :	Touch Points	-	Touch Panel	4-wire Resistive Touch
Touch Panel :	TP Controller	Without touch controller	Touch Signal	-
Mounting :	Rear mounting holes (4-Φ2.6)
Other Spec :	Weight	250g (Typ.)	Treatment	Antiglare, Hard coating (2H)

3.Kyocera TCG057VGLCT-H51-S Optical Details:

Basic Information :	Luminance(cd/m²)	640 (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥5)	Display Mode	TN, Normally White, Transmissive
	Best View on	-	Response(ms)	10/25 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.320; Y:0.340	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6066K	White Uniformity	-
1931 Color Gamlt :	NTSC Ratio	52%	sRGB	72% coverage
	Adobe RGB	54% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4. Kyocera TCG057VGLCT-H51-S Interface Details:

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	150/195mA (Typ./Max.)
Signal Type :	Parallel RGB (1 ch, 6-bit)			Signal Voltage	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position	-		Type	Connector
Interface Detail	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail	IRISO	IMSA-9632S-33Z02-GF1	1 pcs	33 pins	0.5 mm	DRGB-33P1C6B-020A

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
