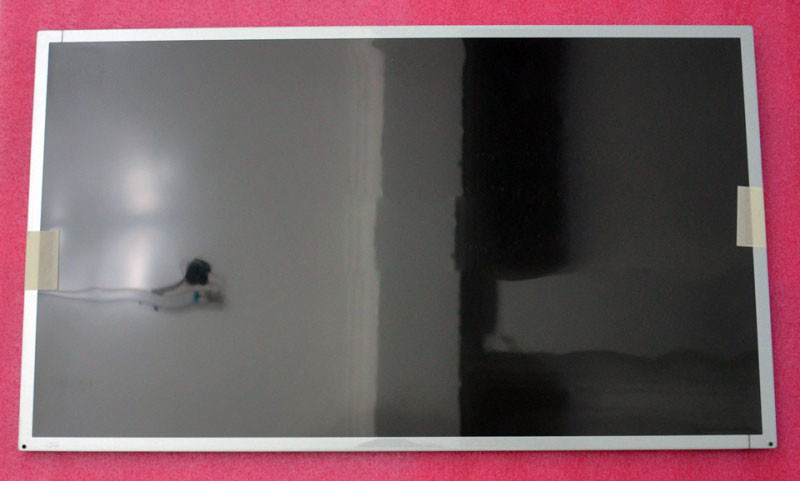

22" LVDS 250cd/m² 1680(RGB)×1050 90PPI TFT LCD Display G220SVN01.0

Ask Lasest Price
Brand Name :	AUO
Model Number :	G220SVN01.0
Certification :	ISO9001
Payment Terms :	TT / Escrow 10 / Paypal / WesternUnion
Supply Ability :	500PCS
Delivery Time :	1-3 Days
Price :	50USD

Add to Cart

Product Details
Company Profile

22" LVDS 250cd/m² 1680(RGB)×1050 90PPI TFT LCD Display G220SVN01.0

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. AUO G220SVN01.0 Mechanical Details:

Pixel Features :	Pixel Format	1680(RGB)×1050 [WSXGA+]	Dot Pitch	0.094×0.282 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.282×0.282 mm (H×V) [90PPI]
Mechanical Size :	Display Area	473.76×296.1 mm (H×V)	Bezel Area	477.7×300.1 mm (H×V)
Mechanical Size :	Outline Dim.	493.7×320.1 mm (H×V)	Outline Depth	15.75 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style	-
Holes & Brackets	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	2.10Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

3. AUO G220SVN01.0 Optical Details:

Basic Information :	Brightness	250 cd/m² (Typ.)	Contrast Ratio	2000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	MVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	91% coverage
	Adobe RGB	71% coverage	DCI-P3	73% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4. AUO G220SVN01.0 Backlight Details:

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	30K(Typ.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position	Edge light type (Top and Bottom)
Interface Features :	Type	Connector	Position		Lamp Driver	With LED Driver
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	STM	MS24049HJ	1.25 mm	9 pins	1 pcs
Driver Electrical :	Voltage Input	10.8/12.0/12.6V (Min./Typ./Max.)		Current Input	1.8/2.1A (Typ./Max.)
Driver Electrical :	Consumption	21.6/25.2W (Typ./Max.)

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
