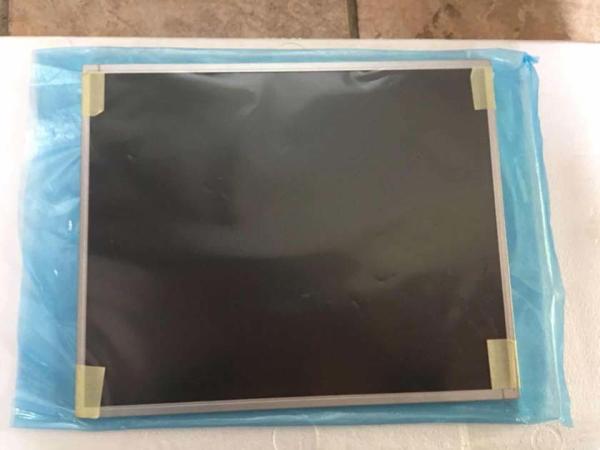

G190EAN01.2 19" 1300cd/m² 1280×1024 LVDS Industrial Lcd Monitor

Ask Lasest Price
Brand Name :	AUO
Model Number :	G190EAN01.2
Certification :	ISO9001
Payment Terms :	TT / Escrow 10 / Paypal / WesternUnion
Supply Ability :	500PCS
Delivery Time :	1-3 Days
Price :	120USD

Add to Cart

Product Details
Company Profile

G190EAN01.2 19" 1300cd/m² 1280×1024 LVDS Industrial Lcd Monitor

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. AUO G190EAN01.2 Optical Features:

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	1300 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	13/12 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	AHVA, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	10776K	Grayscale (8-bit)	X:0.265; Y:0.305
White Variation :	1.25/1.33 (Typ./Max.)(9 points)
Performance :	3D Tech	Sunlight Visibility	Reflectance
Performance :	-	Sunlight Readable	-

3.AUO G190EAN01.2 Mechanical Features:

Panel Size :	19.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1280(LCR)×1024 [SXGA]	LCR Vertical Stripe	0.294×0.294 [86PPI]	0.098×0.294
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	376.32(H) × 301.056(V)	380.32(H) × 305.06(V)	396(H) × 324(V)	9.0/17.5 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	5:4 (H:V)	-
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	1.55Kgs (Typ.)	-	Antiglare

4.AUO G190EAN01.2 Backlight Features:

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Bottom side)	-	-	50K(Min.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	STM	MS24019R	1.25 mm	9 pins	1 pcs
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	12.0±1.2V		1.2A (Typ.)			14.4/15.8W (Typ./Max.)

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
