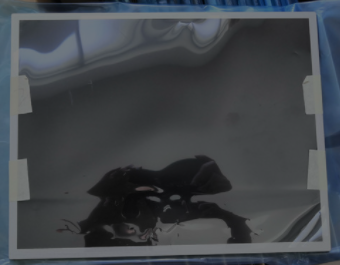

AUO 15.0INCH G150XAN01.2 1024(RGB)×768 (XGA) 85PPI Operating Temp.: -20 ~ 70 °C INDUSTRIAL PANEL

AUO G150XAN01.2 Mechanical Details

Pixel Features :	Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area 304.128×228.096 mm (H×V) Bezel Area 309.9×236.3 mm (H×V) Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 6.8 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M2) on left, right bezel
Other Features :	Weight 660g (Max.) Surface Antiglare, Hard coating (3H)

AUO G150XAN01.2 Optical Details

Basic Information :	Brightness 500 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 25 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.2M (6-bit + FRC) Color Temperature 6485K Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 60% sRGB 78% coverage Adobe RGB 62% coverage DCI-P3 62% coverage Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Basic Info :	Panel Brand Panel Model G150XAN01.2 Diagonal Size 15.0" Application Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -20 ~ 70 °C RoHS State Vibration Rating 1.5G (14.7 m/s²)
Specific Features :
