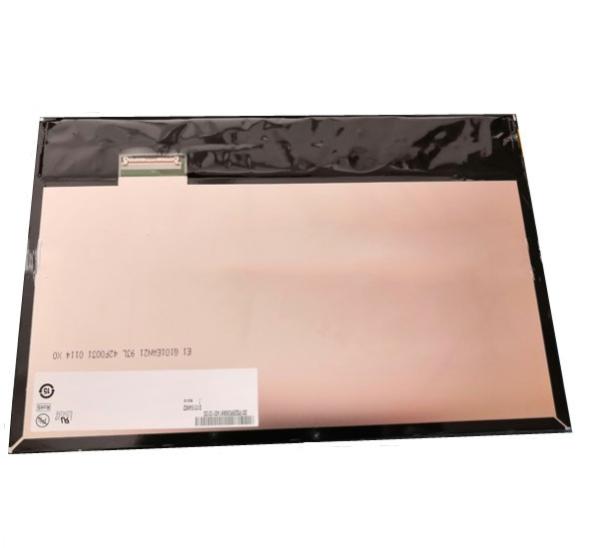

G101EAN02.1 AUO 10.1 1280(RGB)×800, 400cd/m2 89/89/89/89 INDUSTRIAL LCD DISPLAY

AUO G101EAN02.1 Application Details

Basic Information :	Brand		Model	G101EAN02.1
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	10.1"	Alias	-
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	-20 ~~ 60 °C
Environment :	RoHS		Vibration	1.5G (14.7 m/s²)

AUO G101EAN02.1 Mechanical Details

Pixel Features :	Resolution	1280(RGB)×800, WXGA	Dot Pitch(mm)	0.0565×0.1695 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :	Active Area(mm)	216.96(H) × 135.6(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	227.72(H) × 147.8(V)	Depth(mm)	2.67/4.8 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:10 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	195g (Max.)	Treatment	Hard coating

AUO G101EAN02.1 Optical Details

Basic Information :	Luminance(cd/m²)	400 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	29 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.43 (Max.)(5 points)
1931 Color Gamut :	NTSC Ratio	47%	sRGB	66% coverage
	Adobe RGB	49% coverage	DCI-P3	49% coverage
	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G101EAN02.1 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Power Consumption :	3.45W (Max.)

AUO G101EAN02.1 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	278.7/303mA (Typ./Max.)
Signal Electrical :	Consumption	0.92/1.0W (Typ./Max.)
Signal Type :	LVDS (1 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	I-PEX	20765-040E-11A	1 pcs	40 pins	0.5 mm

AUO G101EAN02.1 Backlight Details

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	20K(Min.) (Hours)
Interface Features :	Position	-		Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	12.0±1.2V		Current Supply	189/204.2mA (Typ./Max.)
Driver Electrical :	Consumption	2.27/2.45W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 227.72(W)×147.8(H)×4.8(D) mm, with surface treament of Hard coating, net weight of 195g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G101EAN02.1 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 29 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. G101EAN02.1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
