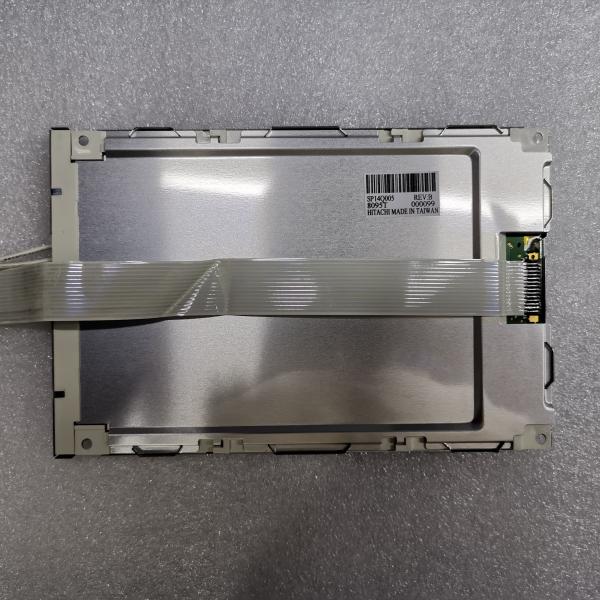

5.7 Inch 320×240 QVGA 220CD/M2 CCFL Hitachi TFT Displays SX14Q005

Ask Lasest Price
Brand Name :	HITACHI
Model Number :	SX14Q005
Certification :	ISO9001
Price :	USD75
Payment Terms :	T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :	500PCS
Delivery Time :	2-3 DAYS

Add to Cart

Product Details
Company Profile

5.7 Inch 320×240 QVGA 220CD/M2 CCFL Hitachi TFT Displays SX14Q005

HITACHI SX14Q005 Summary

SX14Q005 is a 5.7" diagonal CSTN-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral CCFL backlight system, without touch screen. Based on its features, Panelook recommend that this model be applied to Industrial etc. Now this model is discontinued. There are 5 items stock and 2 suppliers of this model on Panelook. We inputted this model's specification on Jan 5 2013 for the first time, and the latest update on Feb 28 2017. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail of SX14Q005. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!

HITACHI SP14Q005 Application Details

Basic Detail :	Manufacturer SP14Q005Model Name Panel Type FSTN-LCD , LCM Another Name - Panel Size 5.7 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS 1.2G (11.76 m/s²)Vibration Level

HITACHI SP14Q005 Optical Details

Basic Detail :	Luminance 220 cd/m² (Typ.) Contrast Ratio 25:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 330/150 (Typ.)(Tr/Td) ms Viewing Angle 40/40/30/50 (Typ.)(CR≥2) Operating Mode STN, Black/White mode, Transmissive
Color Performance :	Chromaticity - Support Color Monochrome

HITACHI SP14Q005 Mechanical Details

Pixel Features :	Number of Pixel 320×240, QVGA Arrangement Rectangle Dot Pitch(W×H) 0.360×0.360 mm Pixel Pitch(W×H) 0.360×0.360 mm [70PPI]
Physical Size :	Active Viewing 115.185(W)×86.385(H) mm Overall Dim. 167(W)×109(H) mm Bezel Opening 122.0(W)×92.0(H) mm Overall Depth 8.5/10.0 (Typ.Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (4-Φ3.5)
Other Detail :	Mass - Surface Antiglare

HITACHI SP14Q005 Interface Detail

Signal Electrical :	Input Current - Input Voltage 3.3/5.0V (Typ.)(VDD) Consumption - Signal Interface Parallel Data (4-bit)
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 1.25 mm 14 pins 1 pcs

HITACHI SP14Q005 Lightting Details

Lamp Features :	Lamp Type CCFL Amount 1 pcs Position Edge light type Exchange - Lamp Shape - Lamp Life 50K(Typ.) (Hours)
Lamp Electrical :	Input Voltage 300V (Typ.) Input Current 5.0±1mA Frequency 70/85KHz (Typ./Max.) Turn-on Voltage 1000V (Min.)(Ta=+25℃)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JAE IL-G-4S-S3C2 2.5 mm 4 pins 1 pcs BLL-4PINS-HNNL
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
