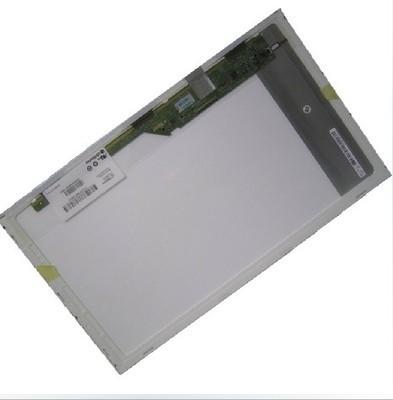

G156XTN01.2 400nits WLED EDP AUO Industrial Panel 1366×768RGB 15.6INCH

AUO G156XTN01.2 Summary

AU Optronics Corp. (hereafter called AUO) G156XTN01.2 is a 15.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, Matte , eDP1.2. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q3, 2020, Now this model is in production. There are 4 items stock and 11 suppliers of this model on Panelook. We inputted this model's specification on Oct 15 2019 for the first time, and the latest update on Jul 31 2023. If you want to embed G156XTN01.2 LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G156XTN01.2 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right

AUO G156XTN01.2 Application Details

Basic Detail :	Manufacturer		Model Name	G156XTN01.2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	15.6 inch	Designed For
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	Vibration Level	-	RoHS

AUO G156XTN01.2 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	800 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	10 (Typ.)(Tr+Td) (ms)
	Viewing Angle	85/85/70/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33/1.43 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	-	sRGB	82% coverage
	Adobe RGB	65% coverage	DCI-P3	65% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G156XTN01.2 Mechanical Details

Pixel Features :	Number of Pixel	1366(RGB)×768 [WXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.084×0.252 mm	Pixel Pitch(W×H)	0.252×0.252 mm [100PPI]
Physical Size :	Active Viewing	344.232(W)×193.536(H) mm	Overall Dim.	-
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style

AUO G156XTN01.2 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
