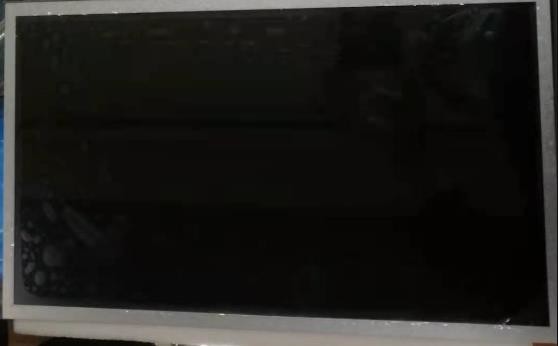

1366×768RGB 220CD/M2 WLED EDP LCD Panel 100PPI G156XTN02.0 AUO

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	G156XTN02.0
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO G156XTN02.0 Application Features

Screen Size :	15.6"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1366(RGB)×768, WXGA	RGB Vertical Stripe	0.084×0.252 mm	0.252×0.252 mm [100PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	344.232×193.536 mm	-	359.5×223.8 mm	3.05/3.2 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Slim (PCBA Flat, T≤3.2mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	380g (Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Face mounting holes (8 pcs) on up, down slugs

Basic Information :	Luminance	Work Mode	Contrast Ratio
	220 cd/m² (Typ.)	TN, Normally White, Transmissive	400:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	45/45/15/35 (Typ.)(CR≥10)	8 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	45%	63%	47%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	47%	34%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.60 (Max.)(5/13 points)

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		-			2.65W (Max.)

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
