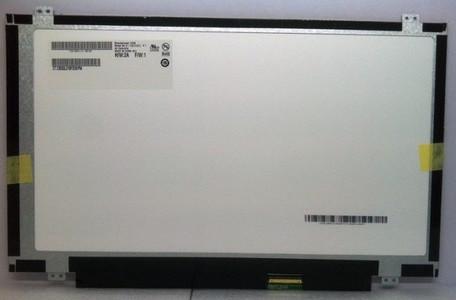

1366×768RGB 15.6" WLED LVDS 350nits AUO TFT LCD G156XTT01.1 85/85/80/80 (Typ.)(CR≥10)

AUO G156XTT01.1 Application Details

Basic Information :	Brand		Model	G156XTT01.1
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	15.6"	Alias	G156XTT01 V.1
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 60 °C
Environment :	RoHS		Vibration	1.5G (14.7 m/s²)

AUO G156XTT01.1 Mechanical Details

Pixel Features :	Resolution	1366(RGB)×768, WXGA	Dot Pitch(mm)	0.084×0.252 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.252×0.252 (H×V) [100PPI]
Mechanical Size :	Active Area(mm)	344.232(H) × 193.536(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	363.8(H) × 215.9(V)	Depth(mm)	12.5 (Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Touch Panel :	Touch Points	-	Touch Panel	PCAP
Touch Panel :	TP Controller	With touch controller	Touch Signal	USB
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.35/1.49Kgs (Typ./Max.)	Treatment	Hard coating (7H)
Other Spec :	Panel Cover	With Strengthened Cover Glass

AUO G156XTT01.1 Optical Details

Basic Information :	Luminance(cd/m²)	350 (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	-	Response(ms)	6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.2M (6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	67%	sRGB	89% coverage
	Adobe RGB	69% coverage	DCI-P3	69% coverage
	Rec.2020	50% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G156XTT01.1 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	No
Power Consumption :	8.15W (Typ.)

AUO G156XTT01.1 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.43/0.52A (Typ./Max.)
Signal Electrical :	Consumption	2.15/2.6W (Typ./Max.)
Signal Type :	LVDS (1 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JAE	FI-XB30SSL-HF15	1 pcs	30 pins	1.0 mm	LVDS-30P1C8B-170A

AUO G156XTT01.1 Backlight Details

Backlight Features:	Shape	-	Type	WLED	Position	Edge light type (Bottom side)
Backlight Features:	Replacement	Replaceable	Quantity	-	Life Time	50K(Min.) (Hours)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	E&T	3808K-F05N-12R	1 pcs	5 pins	1.25 mm
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	12.0±1.2V		Current Supply	0.5/0.6A (Typ./Max.)
Driver Electrical :	Consumption	6.0/7.2W (Typ./Max.)

AUO G156XTT01.1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	8 pcs / box	12.8 Kgs	523×483×277 mm (L×W×H)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×12.5(D) mm, with surface treament of Hard coating (7H), net weight of 1.35/1.49Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G156XTT01.1 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 6/2 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 62% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G156XTT01.1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
