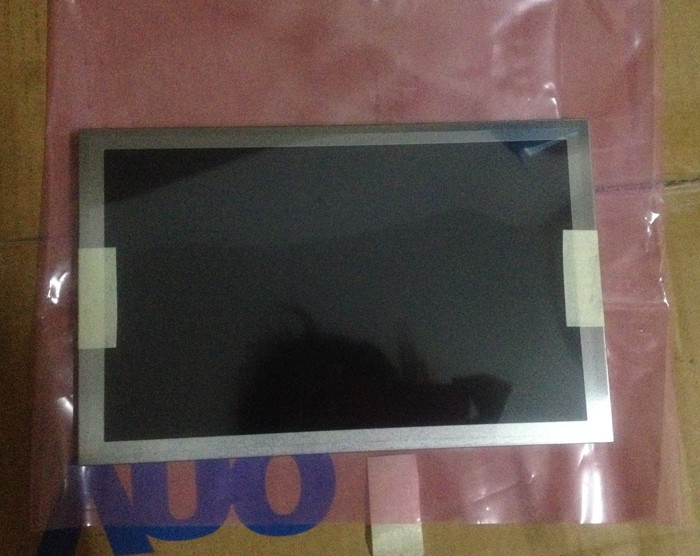

8.9 Inch 1280×272RGB 1750nits AUO TFT LCD WLED LVDS C089KAN01.0

Ask Lasest Price
Brand Name :	AUO
Model Number :	C089KAN01.0
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	200PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

8.9 Inch 1280×272RGB 1750nits AUO TFT LCD WLED LVDS C089KAN01.0

AUO C089KAN01.0 Overview

The C089KAN01.0 is a 8.9 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C . It's general features are summarized by Panelook in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Bar Display, 180° Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Outdoor High Brightness, Stretched Bar LCD, Automotive Display etc. According to the information stored in Panelook this model mass production on Q3, 2016 and last shippment on Q4, 2020, Now this model is discontinued. There are 0 items stock and 3 suppliers of this model on Panelook. We inputted this model's specification on Jun 21 2019 for the first time, and the latest update on May 22 2023. If you want to embed C089KAN01.0 LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The C089KAN01.0 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

AUO C089KAN01.0 Application Details

Basic Info :	Panel Brand		Panel Model	C089KAN01.0
	Diagonal Size	8.9" (Native bar)	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-30 ~ 85 °C	Storage Temp.	-40 ~ 95 °C
Reliability :	RoHS State		Vibration Rating	-
Specific Features :

AUO C089KAN01.0 Mechanical Details

Pixel Features :	Pixel Format	1280(RGB)×272	Dot Pitch	0.0573×0.1719 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1719×0.1719 mm (H×V) [147PPI]
Mechanical Size :	Display Area	220.032×46.7568 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	231.292×62.3 mm (H×V)	Outline Depth	8.8 (Typ.) mm
Outline Features :	Form Factor	Flat Free Form	Orientation	Landscape type
Outline Features :	Aspect Ratio	>3:1 (H:V)	Shape Style
Other Features :	Weight	181.7±18g	Surface	Antiglare

AUO C089KAN01.0 Optical Details

Basic Information :	Brightness	1750 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Min.)(CR≥10)	Optical Mode	AHVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	9/11 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	-	Color Numbers	16.7M (8-bit)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-

AUO C089KAN01.0 Interface Details

Signal Systerm :	LVDS (1 ch, 8-bit)			Logic Voltage	-
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	FH52-40S-0.5SH	0.5 mm	40 pins	1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
