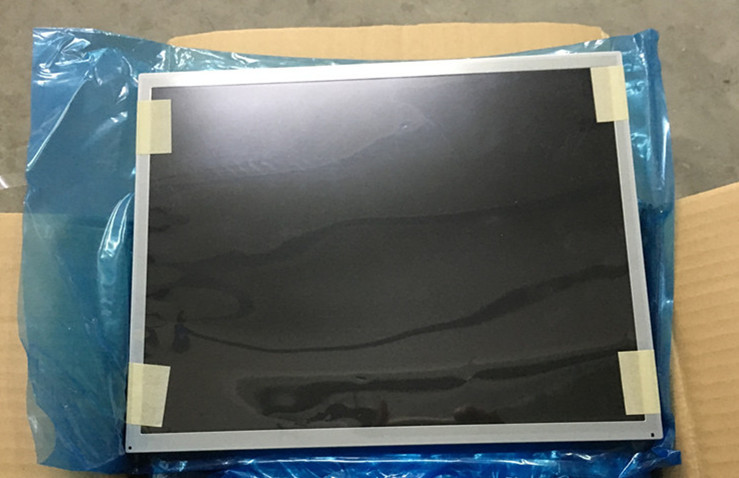

G150XG02 V0 AUO 15INCH 1024×768RGB 550CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	G150XG02 V0
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	200PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO G150XG02 V0 Application Details

Pixel Features :	Pixel Format	1024(RGB)×768 [XGA]	Dot Pitch	0.099×0.297 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area	304.128×228.096 mm (H×V)	Bezel Area	307.4×231.3 mm (H×V)
Mechanical Size :	Outline Dim.	326.5×253.5 mm (H×V)	Outline Depth	14.4±0.2 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4 pcs) on left, right bezel
Other Features :	Weight	1.35Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

Basic Information :	Brightness	550 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/70/50 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	12 o'clock	Response Time	8.8/3.2 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.320	Color Numbers	16.2M (6-bit + FRC)
Color Performance :	Color Temperature	6737K	White Uniformity	1.20 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	66%	sRGB	89% coverage
	Adobe RGB	69% coverage	DCI-P3	69% coverage
	Rec.2020	49% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Back-light Features:	Lamp Shape	Straight	Lamp Type	CCFL	Life Time	60K(Typ.) (Hours)
Back-light Features:	Replacement	-	Amount	4 pcs	Position	Edge light type (Top and Bottom)
Lamp Electrical :	Voltage Input	680/720V (Typ./Max.)		Current Input	2.5/6.5/8.5mA (Min./Typ./Max.)
	Frequency	40/55/60KHz (Min./Typ./Max.)		Kick-off Voltage	1000/1300V (Min.)(Ta=+25/0℃)
	Consumption	17.7W (Typ.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JST	BHR-03VS-1	4.0 mm	3 pins	4 pcs	BLL-3PINS-HNL

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G150XG02 V0 AUO 15INCH 1024×768RGB 550CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY
