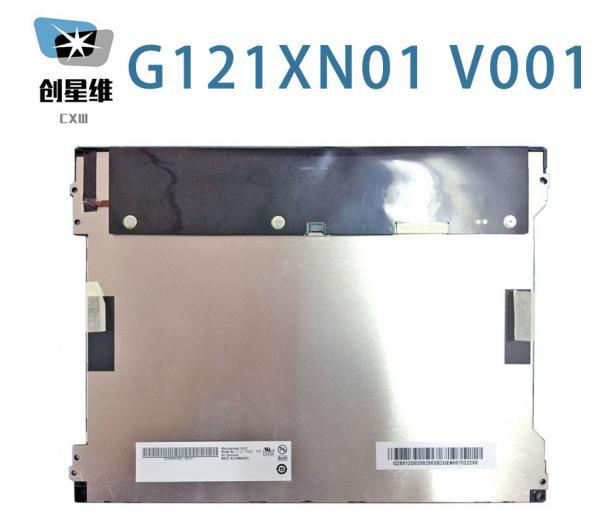

    G121XN01 V001 AUO 12.1INCH 1024×768RGB 500CD/M2 WLED LVDS Storage Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G121XN01 V001
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 3500PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G121XN01 V001 AUO 12.1INCH 1024×768RGB 500CD/M2 WLED LVDS Storage Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    AUO G121XN01 V001 Application Features

    Basic Information :Brand NameModel NameTypeModel Alias
    G121XN01 V001a-Si TFT-LCD , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    -30 ~ 85 °C-30 ~ 85 °C-

    AUO G121XN01 V001 Mechanical Features

    Screen Size :12.1"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    1024(2)×768(2), XGARGBW Rectangle0.120×0.120 mm0.240×0.240 mm [105PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    245.76×184.32 mm250.8×189.4 mm279×209 mm6.0/9.0 (Typ./Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle4:3Landscape type
    Other Spec :MassPanel CoverSurface Treatment
    510g (Max.)-Antiglare, Hard coating (3H)

    AUO G121XN01 V001 Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    500 cd/m² (Typ.)TN, Normally White, Transmissive700:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    -80/80/70/70 (Typ.)(CR≥10)25/10 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    6638K262K/16.2M (6-bit / 6-bit + FRC)X:0.310; Y:0.330
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    72%93%72%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    75%54%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Uniformity :1.33 (Max.)(5 points)

    AUO G121XN01 V001 Electronics Features

    Refresh Rate :60Hz
    Reverse Scan :Yes (180°)
    Power Consumption :6.80W (Typ.)

      AUO G121XN01 V001 Backlight Features

      Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
      WLEDEdge light type (Top side)50K(Min.)9S2P2 stringsNo
      Interface Features :WLED Driver StatePhysical TypeInterface Position
      With LED DriverConnector-
      Interface DetailBrand NameModel NameAmountPinsPin PitchPin Configuration
      E&T3808K-F05N-02R1 pcs5 pins1.25 mm
      WLED Driver Electrical :Input VoltageInput CurrentPower Consumption
      10.8/12.0/12.6V (Min./Typ./Max.)0.49A (Typ.)5.88/7.5W (Typ./Max.)

      AUO G121XN01 V001 Interface Features

      Signal Electrical :Input VoltageInput CurrentPower Consumption
      3.3V (Typ.)280/336mA (Typ./Max.)0.924/1.11W (Typ./Max.)
      Interface Features :Signal TypePhysical TypeInterface Position
      LVDS (1 ch, 6/8-bit)Connector
      Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
      STMMSB240420E1 pcs20 pins1.25 mmLVDS-20P1C8B-080B

      FAQ:

      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
