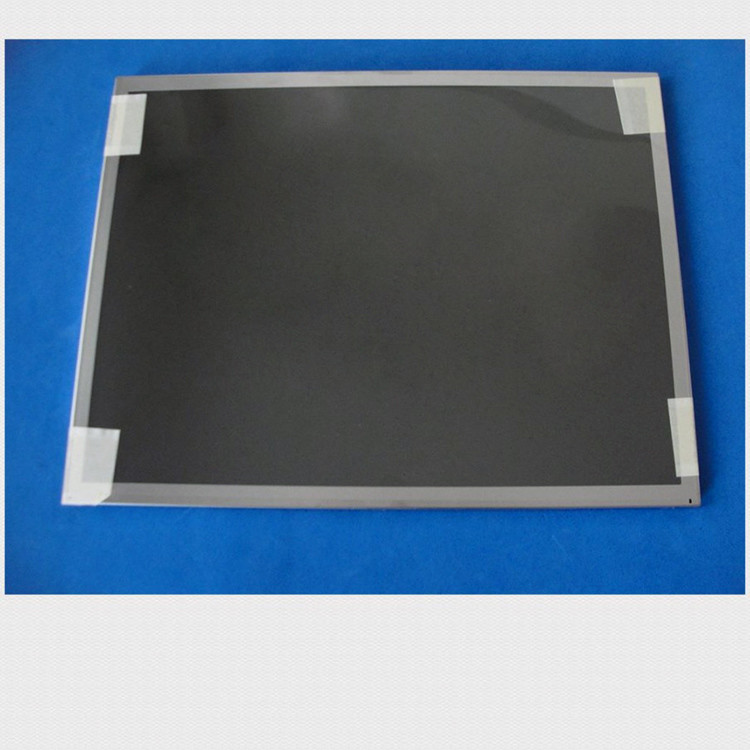

G150XG01 V2 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	G150XG01 V2
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	964PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO G150XG01 V2 Application Details

Pixel Features :	Resolution	1024(RGB)×768, XGA	Dot Pitch(mm)	0.099×0.297 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.297×0.297 (H×V) [85PPI]
Mechanical Size :	Active Area(mm)	304.128(H) × 228.096(V)	Bezel Area(mm)	307.4(H) × 231.3(V)
Mechanical Size :	Outline Dim.(mm)	326.5(H) × 253.5(V)	Depth(mm)	12.0 (Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.10Kgs (Max.)	Treatment	Antiglare, Hard coating (3H)

Basic Information :	Luminance(cd/m²)	350 (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/60 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	12 o'clock	Response(ms)	5.7/2.3 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	67%	sRGB	88% coverage
	Adobe RGB	68% coverage	DCI-P3	69% coverage
	Rec.2020	50% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Backlight Features:	Shape	3 strings	Type	WLED	Position	Edge light type (Top and Bottom)
Backlight Features:	Replacement	Replaceable	Quantity	9S3P	Life Time	50K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	28.8/32.85V (Typ./Max.)		Current Supply	80/84mA (Typ./Max.)
Lamp Electrical :	Consumption	6.9W (Typ.)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	SM06B-SRSS-TB(LF)(SN)	1 pcs	6 pins	1.0 mm	BLE-6PINS-AAACCC
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G150XG01 V2 AUO 15INCH 1024×768RGB 350CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
