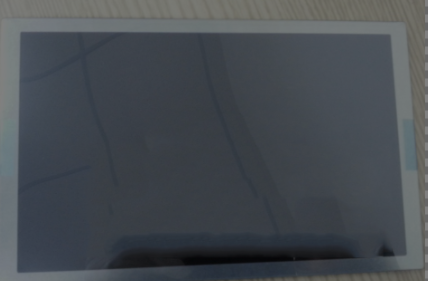

5.7 Inch 640×480 640cd/M2 VGA 141PPI lcd display panels TX14D23VM5BPA

HITACHI TX14D23VM5BPA Summary

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) TX14D23VM5BPA is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

HITACHI TX14D23VM5BPA Application Details

Basic Information :	Brand		Model	TX14D23VM5BPA
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	5.7"	Alias	-
Environment :	Storage Temp.	-30 ~~ 80 °C	Operating Temp.	-20 ~~ 70 °C
Environment :	RoHS		Vibration	2.0G (19.6 m/s²)
Typical Features :
Remarks :	IPS-Like

HITACHI TX14D23VM5BPA Mechanical Details

Pixel Features :	Resolution	640(RGB)×480, VGA	Dot Pitch(mm)	0.060×0.180 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.180×0.180 (H×V) [141PPI]
Mechanical Size :	Active Area(mm)	115.2(H) × 86.4(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	131(H) × 102.2(V)	Depth(mm)	9.1±0.5
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Touch Panel :	Touch Points	-	Touch Panel	4-wire Resistive Touch, F/G
Touch Panel :	TP Controller	Without touch controller	Touch Signal	-
Mounting :	Rear mounting holes (4-M2)
Other Spec :	Weight	145g (Typ.)	Treatment	Antiglare

HITACHI TX14D23VM5BPA Optical Details

Basic Information :	Luminance(cd/m²)	640 (Typ.)	Contrast Ratio	400:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	-	Response(ms)	50 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.320; Y:0.340	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6066K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	50%	sRGB	66% coverage
	Adobe RGB	51% coverage	DCI-P3	51% coverage
	Rec.2020	37% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

HITACHI TX14D23VM5BPA Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	160/250mA (Typ./Max.)
Signal Electrical :	Consumption	528mW
Signal Type :	CMOS (1 ch, 6-bit)			Signal Voltage	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JAE	FA5B040HP1	1 pcs	40 pins	0.5 mm	DRGB-40P1C6B-340B

HITACHI TX14D23VM5BPA Backlight Details

Backlight Features:	Shape	Array	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	3S9P	Life Time	50K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	12.0±0.5V		Current Supply	180mA (Typ.)
Lamp Electrical :	Consumption	2.16W (Typ.)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	BHR-03VS-1	1 pcs	3 pins	4.0 mm	BLE-3PINS-ANC
Backlight Driver :	No
