QVGA 70PPI 5.7 Inch 320x240 640cd/M2 TFT LCD Panel TX14D26VM1BPA

Ask Lasest Price
Brand Name :	KOE
Model Number :	TX14D26VM1BPA
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	400PCS
Delivery Time :	2-3 DAYS
Price :

Add to Cart

Product Details
Company Profile

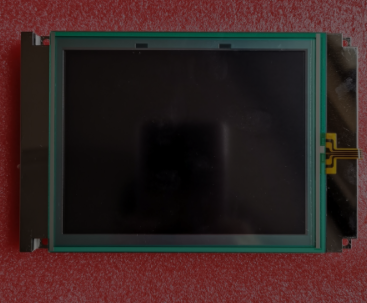

QVGA 70PPI 5.7 Inch 320x240 640cd/M2 TFT LCD Panel TX14D26VM1BPA

KOE TX14D26VM1BPA Overview

The TX14D26VM1BPA is a 5.7 inch diagonal a-Si TFT-LCD display panel product from Kaohsiung Opto-Electronics Inc. (hereafter called KOE), with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 3.0G (29.4 m/s²).

KOE TX14D26VM1BPA Application Details

Basic Detail :	Manufacturer		Model Name	TX14D26VM1BPA
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	5.7 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	3.0G (29.4 m/s²)	RoHS
Features :
Remarks :	Lite+

KOE TX14D26VM1BPA Optical Details

Basic Information :	Luminance	640 cd/m² (Typ.)	Contrast Ratio	800 : 1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/80/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.340	Support Color	262K (6-bit)
Color Performance :	Color Temperature	6551K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	59%	sRGB	74% coverage
	Adobe RGB	58% coverage	DCI-P3	61% coverage
	Rec.2020	44% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

KOE TX14D26VM1BPA Mechanical Details

Pixel Features :	Number of Pixel	320(RGB)×240 [QVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.120×0.360 mm	Pixel Pitch(W×H)	0.360×0.360 mm [70PPI]
Physical Size :	Active Viewing	115.2(W)×86.4(H) mm	Overall Dim.	131(W)×102.2(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	8.6±0.5 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Touchscreen :	TP Controller	Without controller	Control Signal	-
Touchscreen :	Touch Points	1 point	TP Technology	4-wire Resistive Touch
Fixation :	Rear mounting Pole (4-M2)
Other Detail :	Mass	150g	Surface	Antiglare

KOE TX14D26VM1BPA Interface Details

Signal Electrical :	Input Current	57/75mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.27W (Typ.)	Signal Interface	CMOS (1 ch, 6-bit)
Logic Voltage for Signals :	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	JAE	FA5B040HP1	1 pcs	0.5 mm	40 pins

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
