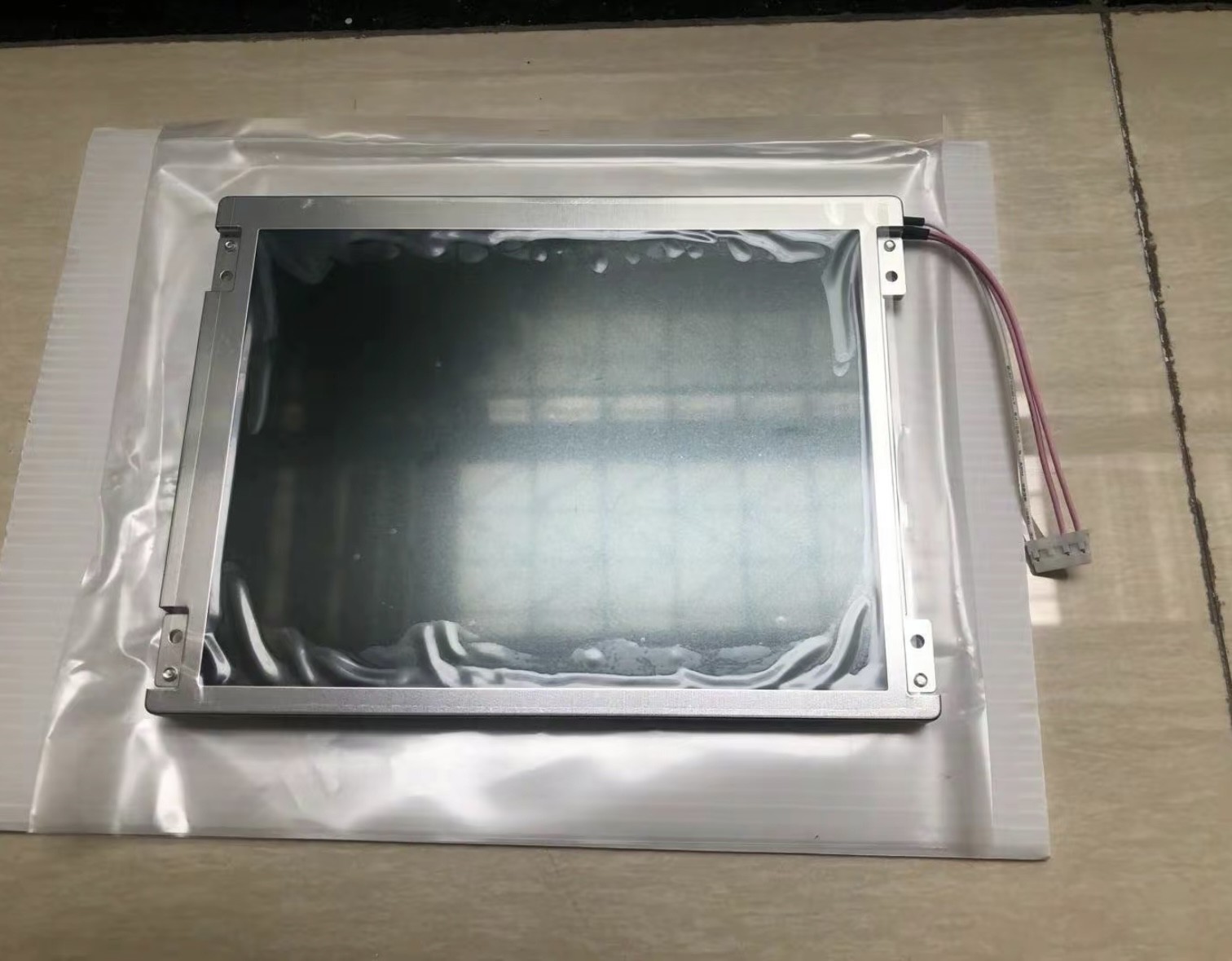

    TX14D10VM1BAA HITACHI 5.7 inch 640(RGB)×480 350 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : HITIACH
    Model Number : TX14D10VM1BAA
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 300PCS
    Delivery Time : 2-3 DAYS
    Price : 120USD
    • Product Details
    • Company Profile

    TX14D10VM1BAA HITACHI 5.7 inch 640(RGB)×480 350 (cd/m²) Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

    HITACHI TX14D10VM1BAA Application Details

    Basic Info :
    Panel Brand
    Panel Model
    TX14D10VM1BAA
    Diagonal Size
    5.7"
    Application
    Panel Type
    a-Si TFT-LCD , LCM
    Model Alias
    -
    Reliability :
    Operating Temp.
    -20 ~ 70 °C
    Storage Temp.
    -30 ~ 80 °C
    RoHS State
    Vibration Rating
    2.0G (19.6 m/s²)
    Specific Features :
    Remarks :
    LTS, LVDS, LED, WTR

    HITACHI TX14D10VM1BAA Mechanical Details

    Pixel Features :
    Pixel Format
    640(RGB)×480, VGA
    Dot Pitch
    0.060×0.180 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.180×0.180 mm (H×V) [141PPI]
    Mechanical Size :
    Display Area
    115.2×86.4 mm (H×V)
    Bezel Area
    119.4×90.6 mm (H×V)
    Outline Dim.
    131×102 mm (H×V)
    Outline Depth
    11.6±0.5 mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    4:3 (H:V)
    Shape Style
    Holes & Brackets :
    Rear mounting holes (4-Ф2.4)
    Other Features :
    Weight
    160g (Typ.)
    Surface
    -

    HITACHI TX14D10VM1BAA Optical Details

    Basic Information :
    Brightness
    350 cd/m² (Typ.)
    Contrast Ratio
    350:1 (Typ.) (Transmissive)
    Viewing Angle
    70/70/70/70 (Typ.)(CR≥5)
    Optical Mode
    TN, Normally White, Transmissive
    Viewing Direction
    12 o'clock
    Response Time
    45 (Typ.)(Tr+Td) ms
    Color Performance :
    Chromaticity
    Wx:0.330; Wy:0.350
    Color Numbers
    262K (6-bit)
    Color Temperature
    5598K
    Uniformity
    1.33 (Max.)(9 points)
    1931 Color Gamut :
    NTSC Ratio
    57%
    sRGB
    74% coverage
    Adobe RGB
    59% coverage
    DCI-P3
    59% coverage
    Rec.2020
    42% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    HITACHI TX14D10VM1BAA Interface Detail

    Signal Systerm :
    LVDS (1 ch, 6-bit)
    Logic Voltage
    -
    Signal Electrical :
    Voltage Input
    3.3V (Typ.)
    Current Input
    145/174mA (Typ./Max.)
    Consumption
    0.479W (Typ.)
    Interface Features :
    Type
    Connector
    Position
    -
    Connector Detail :
    Brand
    Model
    Pin Pitch
    Pins
    Amount
    Configuration
    JAE
    FI-SEB20P-HF13E-E1500
    1.25 mm
    20 pins
    1 pcs
    LVDS-20P1C6B-005A
