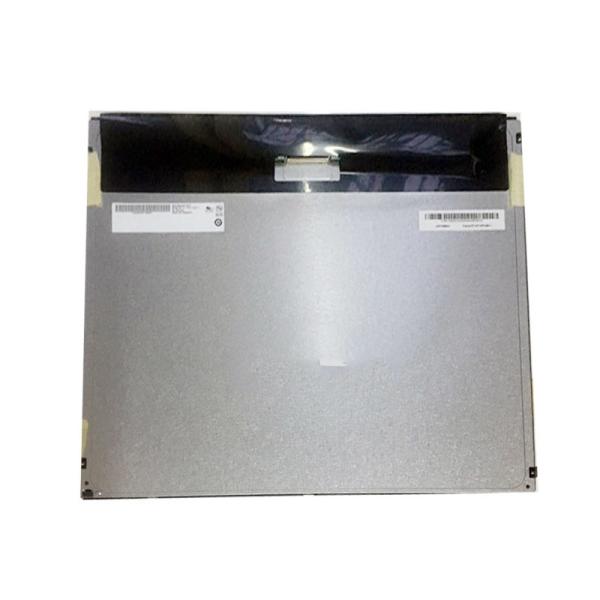

    AUO 17 INCH 1280×1024RGB 400nits WLED LVDS TFT LCD G170ETN03.1

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G170ETN03.1
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 400PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    AUO 17 INCH 1280×1024RGB 400nits WLED LVDS TFT LCD G170ETN03.1

    AUO G170ETN03.1 Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    G170ETN03.1a-Si TFT-LCD , LCM-
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    0 ~ 50 °C-20 ~ 60 °C-

    AUO G170ETN03.1 Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    400 (Typ.)85/85/80/80 (Typ.)(CR≥10)3.8/1.2 (Typ.)(Tr/Td)
    Best View onDisplay ModeContrast Ratio
    -TN, Normally White, Transmissive1000 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    6485K16.7M (6-bit + Hi-FRC)X:0.313; Y:0.329
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    71%94%73%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    74%53%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Variation :1.25/1.33 (Typ./Max.)(9 points)

    AUO G170ETN03.1 Mechanical Features

    Panel Size :17.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    1280(RGB)×1024 [SXGA]RGB Vertical Stripe0.264×0.264 [96PPI]0.088×0.264
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    337.92(H) × 270.336(V)341.7(H) × 274.1(V)358.5(H) × 296.5(V)10.3±0.5 mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type5:4 (H:V)
    Mounting :Side mounting holes (4-M3) on left, right bezel
    Other Detail :WeightPanel CoverTreatment
    1.27Kgs (Typ.)-Antiglare, Hard coating (3H)

    AUO G170ETN03.1 Electronics Features

    Reverse Scan :No
    Vertical Frequency :60Hz
    Power Consumption :8.94W (Typ.)

    AUO G170ETN03.1 Backlight Features

    Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
    WLEDEdge light type (Bottom side)9S4P4 strings30K(Min.)No
    WLED Electrical :Voltage SupplyCurrent SupplyPower
    27±1.8V55mA5.94/6.34W (Typ./Max.)
    Interface Features :PositionBacklight DriverType
    Down left cornerNoConnector
    Interface Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    E&T3707K-S06N-21R1.0 mm6 pins1 pcsBLE-6PINS-CCAACC

      AUO G170ETN03.1 Interface Features

      Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
      5.0V (Typ.)0.60/0.72A (Typ./Max.)3.0/3.6W (Typ./Max.)
      Interface Features :PositionSignalType
      Upper middle of panelLVDS (2 ch, 8-bit)Connector
      Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
      STMMSCKT2407P30HB1.0 mm30 pins1 pcsLVDS-30P2C8B-160A

      FAQ:

      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
