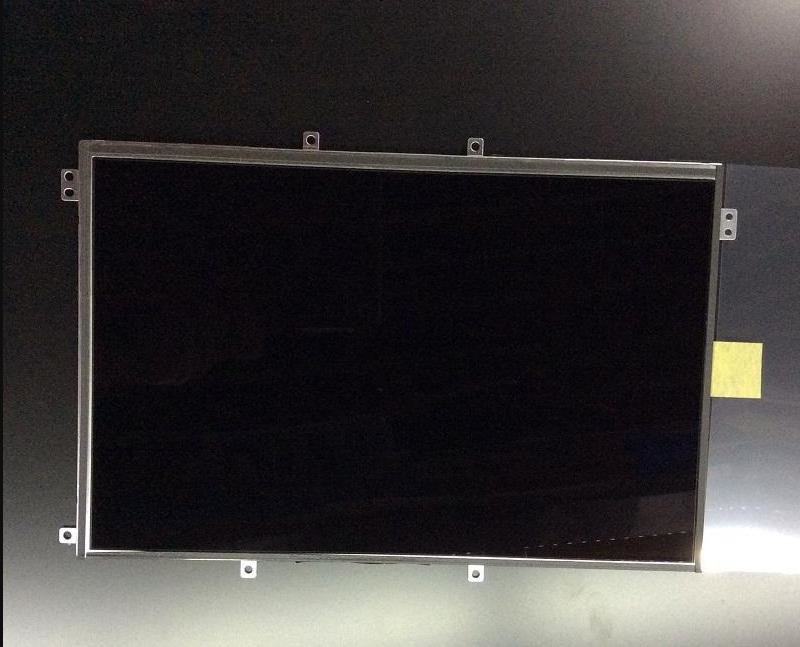

AA084SB11 Mitsubishi 8.4INCH 800×600 RGB 1200CD/M2 WLED INDUSTRIAL LCD DISPLAY

Mitsubishi AA084SB11 Application Features

Basic Information :	Brand	Model 1 Compatible	Type	Model Alias
Basic Information :		AA084SB11	a-Si TFT-LCD , LCM	T-55466D084J-LW-A-ACN
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-30 ~ 80 °C	-30 ~ 80 °C

Mitsubishi AA084SB11 Mechanical Features

Panel Size :	8.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	800(RGB)×600, SVGA	RGB Vertical Stripe	0.071×0.213 mm	0.213×0.213 mm [119PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	170.4×127.8 mm	174.9×132.2 mm	199.5×149 mm	11.5 (Typ.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Face mounting holes (4-Φ3.4), Side mounting holes (4-M2)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	365g (Typ.)	Antiglare, Hard coating (3H)

Mitsubishi AA084SB11 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	1200 cd/m² (Typ.)	TN, Normally White, Transmissive	600:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	80/80/80/60 (Typ.)(CR≥10)	6 o'clock	4/12 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	262K/16.7M (6-bit / 8-bit)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	39%	54%	41%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	41%	29%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.30 (Max.)(5 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable

Mitsubishi AA084SB11 Electronics Features

Power Consumption :	6.9W (Typ.)
Frame Rate :	60Hz
Reverse Scan :	Yes (180°)

Mitsubishi AA084SB11 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	260/420mA (Typ./Max.)		3.3V (Typ.)			-
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	LVDS (1 ch, 6/8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	JAE	FI-SEB20P-HFE	1 pcs	1.25 mm	20 pins	LVDS-20P1C8B-010H

Mitsubishi AA084SB11 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Bottom side)	2 strings	2 strings	100K(Typ.)	Replaceable
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	100/110mA (Typ./Max.)		30/38.1V (Typ./Max.)			6.0W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	SM06B-SHLS-TF(LF)(SN)	1 pcs	1.0 mm	6 pins	BLE-6PINS-NNCAAC

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 199.5(W)×149(H)×12(D) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 365g (Typ.). As a TN, Normally White, Transmissive LCM product, AA084SB11 can provides 1200 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA084SB11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
