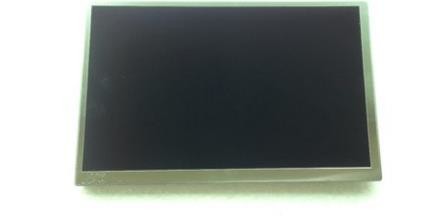

    C070VVN03.0 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : C070VVN03.0
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 200PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    C070VVN03.0 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

    AUO C070VVN03.0 Application Details

    Basic Info :Panel BrandPanel ModelC070VVN03.0
    Diagonal Size7.0"Application
    Panel Typea-Si TFT-LCD , LCMModel Alias-
    Reliability :Operating Temp.-30 ~ 85 °CStorage Temp.-40 ~ 95 °C
    RoHS StateVibration Rating2.9G (28.4 m/s²)

    AUO C070VVN03.0 Mechanical Details

    Pixel Features :Pixel Format800(RGB)×480 [WVGA]Dot Pitch0.0635×0.1905 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.1905×0.1905 mm (H×V) [133PPI]
    Mechanical Size :Display Area152.4×91.44 mm (H×V)Bezel Area155.05×93.7 mm (H×V)
    Outline Dim.164.55×105.01 mm (H×V)Outline Depth6.68±0.3 mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio15:9 (H:V)Shape Style
    Holes & Brackets :Without
    Other Features :Weight159±15gSurfaceAntiglare, Antireflection

    AUO C070VVN03.0 Optical Details

    Basic Information :Brightness450 cd/m² (Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Optical ModeAMVA, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time15/25 (Typ.)(Tr/Td) (ms)
    Color Performance :ChromaticityWx:0.308; Wy:0.329Color Numbers262K (6-bit)
    Color Temperature6757KWhite Uniformity1.25 (Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio70%sRGB89% coverage
    Adobe RGB70% coverageDCI-P373% coverage
    Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO C070VVN03.0 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Time Controller (T-CON) :Embedded T-CON

    AUO C070VVN03.0 Backlight Details

    Back-light Features:Lamp Shape3 stringsLamp TypeWLEDLife Time10K(Min.) (Hours)
    Replacement-Amount6S3PPositionEdge light type
    Lamp Electrical :Voltage Input21/24V (Typ./Max.)Current Input80/85mA (Typ./Max.)
    Interface Features :TypeConnectorPosition-Lamp DriverNo
    Interface Detail :BrandModelPin PitchPinsAmountConfiguration
    HRSDF13-6S-1.25C1.25 mm6 pins1 pcs

    AUO C070VVN03.0 Interface Details

    Signal Systerm :Parallel RGB (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Signal Electrical :Voltage Input3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL)Current Input6.7/26.0/0.15/0.2mA (Typ.)(IDD/IAIDD/IGH/IGL)
    Interface Features :TypeFPCPosition-
    FPC Detail :BrandModelPin PitchPinsAmountConfiguration
    0.5 mm50 pins1 pcs

    FAQ:


    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
