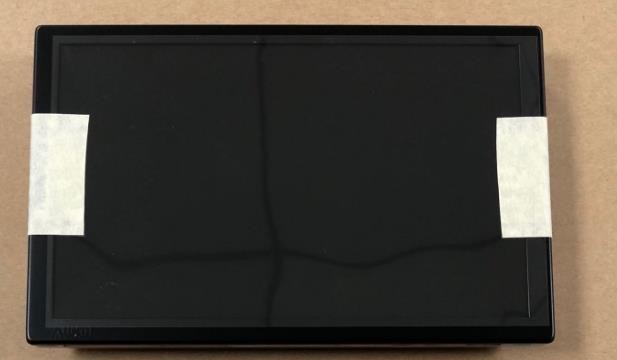

C070VW02 V1 AUO 7INCH 800×480RGB 350CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	C070VW02 V1
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	900PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO C070VW02 V1 Application Details

Pixel Features :	Resolution	800(RGB)×480, WVGA	Dot Pitch(mm)	0.0635×0.1905 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.1905×0.1905 (H×V) [133PPI]
Mechanical Size :	Active Area(mm)	152.4(H) × 91.44(V)	Bezel Area(mm)	153.6(H) × 92.64(V)
Mechanical Size :	Outline Dim.(mm)	170.8(H) × 107.95(V)	Depth(mm)	11.7/21.5 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	15:9 (H:V)	Orientation	Landscape type
Touch Panel :	Touch Points	-	Touch Panel	4-wire Resistive Touch
Mounting :	Side mounting holes (4-Φ4) on left, right slugs
Other Spec :	Weight	300±30g	Treatment	Antiglare (Haze 40%), Hard coating (3H)

Basic Information :	Luminance(cd/m²)	350 (Min.)	Contrast Ratio	300:1 (Typ.) (Transmissive)
	Viewing Angle	60/60/40/60 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	20/30 (Max.)(Tr/Td)
Color Performance :	White Coordinate	X:0.300; Y:0.330	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	7203K	White Uniformity	-

Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

AUO C070VW02 V1 Interface Details

Signal Electrical :	Voltage Supply	3.3/9.8/15/-7V (Typ.)(VDD/AVDD/VGH/VGL)		Current Supply	80/30/0.15/0.15mA (Max.)(ICC/IDD/IGH/IGL)
Signal Type :	TTL (1 ch, 6-bit)			Signal Voltage	0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
	SMK	CFP5432-0352F	1 pcs	32 pins	0.5 mm
	SMK	CFP5450-0352F	1 pcs	50 pins	0.5 mm
	SMK	CFP8408-0352F	2 pcs	8 pins	1.0 mm

Backlight Features:	Shape	4 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	4S4P	Life Time	10K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	14.0±1.2V		Current Supply	80/100mA (Typ./Max.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
