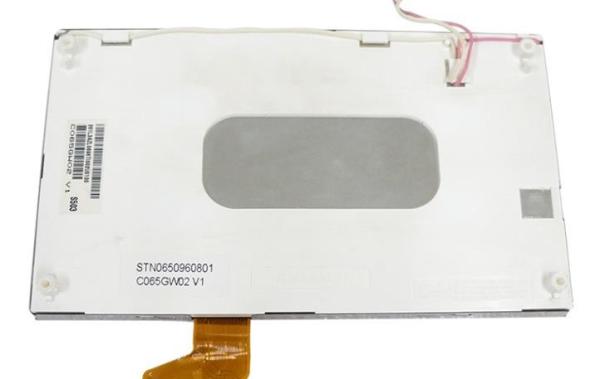

    C065GW02 V1 AUO 6.5INCH 400×234RGB 550CD/M2 CCFL Analog Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : C065GW02 V1
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 490PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    C065GW02 V1 AUO 6.5INCH 400×234RGB 550CD/M2 CCFL Analog Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    AUO C065GW02 V1 Application Details

    Basic Detail :ManufacturerModel NameC065GW02 V1
    Panel Typea-Si TFT-LCD , LCMAnother NameC065GW02 V.1
    Panel Size6.5 inchDesigned For
    Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-40 ~ 95 °C
    Vibration Level2.9G (28.4 m/s²)RoHS-

    AUO C065GW02 V1 Optical Details

    Basic Information :Luminance550 cd/m² (Typ.)Contrast Ratio300 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed15/20 (Typ.)(Tr/Td) (ms)
    Viewing Angle60/60/45/60 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.310; Wy:0.330Support ColorFull color
    Color Temperature6638KWhite Uniformity1.30 (Max.)(9 points)

    AUO C065GW02 V1 Mechanical Details

    Pixel Features :Number of Pixel400(RGB)×234ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.1195×0.339 mmPixel Pitch(W×H)0.3585×0.339 mm [71PPI]
    Physical Size :Active Viewing143.4(W)×79.326(H) mmOverall Dim.155(W)×90.83(H) mm
    Bezel Opening144.8(W)×80.53(H) mmOverall Depth8.15 (Typ.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:9Shape Style
    Fixation :Rear mounting holes
    Other Detail :Mass150±10gSurfaceAntiglare (Haze 25%)

    AUO C065GW02 V1 Electronics Details

    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :3.1W (Typ.)
    Time Controller (T-CON) :Need external T-CON: UPS017,UPS051,AUO027

    AUO C065GW02 V1 Interface Details

    Signal Electrical :Input Current1.03/5.05/0.052/0.049mA (Typ.)(ICC/IDD/IGH/IGL)Input Voltage3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
    Consumption-Signal InterfaceTFT Specific Analog RGB
    Interface Features :Position-Physical TypeFPC
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    1 pcs0.5 mm26 pins

    AUO C065GW02 V1 Lightting Details

    Lamp Features:Lamp ShapeL shapeLamp TypeCCFLPositionEdge light type
    Exchange-Amount1 pcsLife10K(Min.) (Hours)
    Lamp Electrical :Input Current6.0/6.5mA (Typ./Max.)Input Voltage510/560V (Typ./Max.)
    Frequency60/80KHz (Typ./Max.)Turn-on Voltage1000/1300/1580V (Max.)(Ta=+25/0/-25℃)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTBHR-03VS-11 pcs4.0 mm3 pinsBLL-3PINS-HNL
    Backlight Driver :No

    FAQ:


    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

    C065GW02 V1 AUO 6.5INCH 400×234RGB 550CD/M2 CCFL Analog Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
