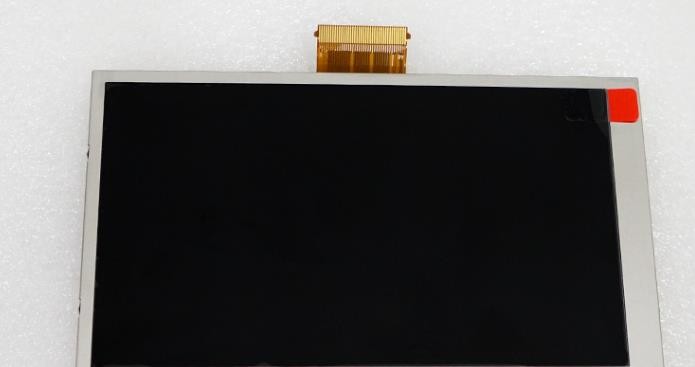

    C050FW02 V0 AUO 5INCH 480×234RGB 700CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : C050FW02 V0
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    C050FW02 V0 AUO 5INCH 480×234RGB 700CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    AUO C050FW02 V0 Application Details

    Basic Detail :ManufacturerModel NameC050FW02 V0
    Panel Typea-Si TFT-LCD , LCMAnother NameC050FW02 V.0
    Panel Size5.0 inchDesigned For
    Maximum Ratings :OP Temperature-30 ~ 85 °CST Temperature-40 ~ 95 °C
    Vibration Level2.9G (28.4 m/s²)RoHS

    AUO C050FW02 V0 Optical Details

    Basic Information :Luminance700 cd/m² (Typ.)Contrast Ratio700 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed16 (Typ.)(Tr+Td) (ms)
    Viewing Angle60/60/40/60 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.330Support Color16.2M (8-bit)
    Color Temperature6477KWhite Uniformity1.43 (Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio71%sRGB91% coverage
    Adobe RGB71% coverageDCI-P373% coverage
    Rec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-

      AUO C050FW02 V0 Mechanical Details

      Pixel Features :Number of Pixel480(RGB)×234ArrangementRGB Vertical Stripe
      Dot Pitch(W×H)0.077×0.267 mmPixel Pitch(W×H)0.267×0.267 mm [106PPI]
      Physical Size :Active Viewing110.88(W)×62.478(H) mmOverall Dim.124(W)×75.2(H) mm
      Bezel Opening113.28(W)×64.878(H) mmOverall Depth6.2/8.0 (Typ./Max.) mm
      Outline Features :Form ShapeFlat RectangleOrientationLandscape type
      Aspect Ratio(W:H)16:9Shape Style
      Other Detail :Mass86.0gSurface-

      AUO C050FW02 V0 Electronics Details

      Refresh Rate :60Hz
      Reverse Scan :Yes (U/D, L/R)

      AUO C050FW02 V0 Interface Details

      Signal Electrical :Input Current170/220mA (Typ./Max.)Input Voltage3.3V (Typ.)
      Consumption545/770mW (Typ./Max.)Signal InterfaceParallel RGB (1 ch, 8-bit)
      Interface Features :Position-Physical TypeFPC
      Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
      1 pcs0.5 mm40 pins

      AUO C050FW02 V0 Lightting Details

      Lamp Features:Lamp Shape1 stringLamp TypeWLEDPositionEdge light type
      Exchange-Amount6S1PLife10K(Min.) (Hours)
      Lamp Electrical :Input Current80/85mA (Typ./Max.)Input Voltage21.0/24.0V (Typ./Max.)
      Interface Features :Position-Physical TypeConnector
      Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
      molex51004-02001 pcs2.0 mm2 pinsBLE-2PINS-AC
      Backlight Driver :No

      FAQ:


      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
