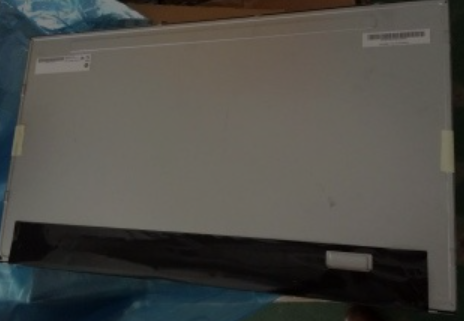

    G238HAN01.0 AUO 23.8 INCH WLED Backlight,Reverse I/F,Matte TCO 6.0 Compliance

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G238HAN01.0
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 200PCS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    G238HAN01.0 AUO 23.8 INCH WLED Backlight,Reverse I/F,Matte TCO 6.0 Compliance

    AUO G238HAN01.0 Summary

    AU Optronics Corp. (hereafter called AUO) G238HAN01.0 is a 23.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).

    AUO G238HAN01.0 Optical Details

    Basic Detail :
    Luminance
    250 cd/m² (Typ.)
    Contrast Ratio
    1000:1 (Typ.) (Transmissive)
    Good View at
    Symmetry
    Response Speed
    14 (Typ.)(G to G) ms
    Viewing Angle
    89/89/89/89 (Typ.)(CR≥10)
    Operating Mode
    AHVA, Normally Black, Transmissive
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Support Color
    16.7M (6-bit + Hi-FRC)
    Color Temperature
    6485K
    White Variation
    1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :
    NTSC Ratio
    75%
    sRGB
    97% coverage
    Adobe RGB
    75% coverage
    DCI-P3
    77% coverage
    Rec.2020
    56% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO G238HAN01.0 Mechanical Details

    Pixel Features :
    Number of Pixel
    1920(RGB)×1080, FHD
    Arrangement
    RGB Vertical Stripe
    Dot Pitch(W×H)
    0.0915×0.2745 mm
    Pixel Pitch(W×H)
    0.2745×0.2745 mm [92PPI]
    Physical Size :
    Active Viewing
    527.04(W)×296.46(H) mm
    Overall Dim.
    543(W)×317.4(H) mm
    Bezel Opening
    530.2(W)×299.6(H) mm
    Overall Depth
    8.4/11.65 (Typ./.Max.) mm
    Outline Features :
    Form Shape
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio(W:H)
    16:9
    Shape Style
    Fixation :
    Side mounting holes (4-M3) on left, right bezel
    Other Detail :
    Mass
    2.28±0.08Kgs
    Surface
    Antiglare, Hard coating (3H)

    AUO G238HAN01.0 Lightting Details

    Lamp Features :
    Lamp Type
    WLED
    Amount
    17S4P
    Position
    Edge light type (Bottom side)
    Exchange
    -
    Lamp Shape
    4 strings
    Lamp Life
    30K(Min.) (Hours)
    Lamp Electrical :
    Input Voltage
    54.4±6.8V
    Input Current
    70/77mA (Typ./Max.)
    Consumption
    15.2/17.1W (Typ./.Max.)
    Interface Features :
    Position
    Down left corner
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Amount
    Pin Assignment
    E&T
    1.0 mm
    6 pins
    1 pcs
    BLE-6PINS-CCAACC
    Backlight Driver :
    No
