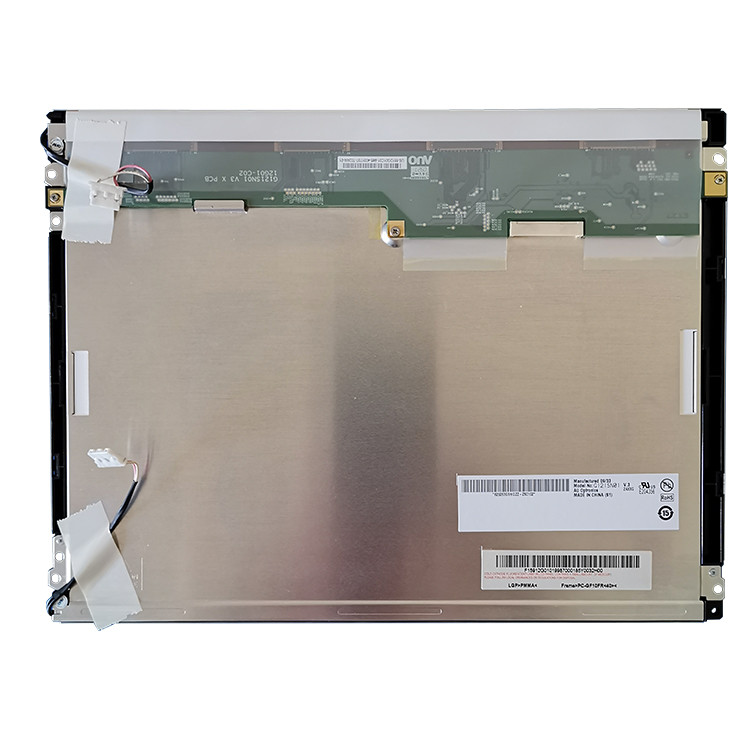

    G121SN01 V3 AUO 12.1 INCH Lamp Repaceable,Life ≥ 50K hours,180° Reverse,6/8 bit,Matte

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G121SN01 V3
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 200PCS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    G121SN01 V3 AUO 12.1 INCH Lamp Repaceable,Life ≥ 50K hours,180° Reverse,6/8 bit,Matte

    AUO G121SN01 V3 Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    G121SN01 V3a-Si TFT-LCD , LCMG121SN01 V.3
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    -30 ~ 85 °C-30 ~ 85 °C-
    Used For :
    Specific Features :

      AUO G121SN01 V3 Mechanical Details

      Pixel Features :Resolution800(RGB)×600, SVGADot Pitch(mm)0.1025×0.3075 (H×V)
      Pixel FormatRGB Vertical StripePixel Pitch(mm)0.3075×0.3075 (H×V) [82PPI]
      Mechanical Size :Active Area(mm)246(H) × 184.5(V)Bezel Area(mm)249.05(H) × 188.3(V)
      Outline Dim.(mm)279(H) × 209(V)Depth(mm)11.0 (Max.)
      Outline Features :Form StyleFlat RectangleOutline Shape
      Aspect Ratio4:3 (H:V)OrientationLandscape type
      Mounting :Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel
      Other Spec :Weight660g (Typ.)TreatmentAntiglare, Hard coating (3H)

      AUO G121SN01 V3 Optical Details

      Basic Information :Luminance(cd/m²)400 (Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
      Viewing Angle80/80/50/60 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
      Best View on6 o'clockResponse(ms)10/25 (Typ.)(Tr/Td)
      Color Performance :White CoordinateX:0.313; Y:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
      Color Temperature6485KWhite Uniformity-
      1931 Color Gamlt :NTSC Ratio54%sRGB74% coverage
      Adobe RGB57% coverageDCI-P356% coverage
      Rec.202040% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

      AUO G121SN01 V3 Backlight Details

      Backlight Features:ShapeStraightTypeCCFLPositionEdge light type (Top and Bottom)
      ReplacementReplaceableQuantity2 pcsLife Time50K(Min.) (Hours)
      Lamp Electrical :Voltage Supply510V (Typ.)Current Supply3.0/6.0/6.5mA (Min./Typ./Max.)
      Frequency40/55/60KHz (Min./Typ./Max.)Startup Voltage930/1120V (Max.)(Ta=+25/0℃)
      Consumption3.8/6.7/7.7W (Min./Typ./Max.)
      Interface Features :Position-TypeConnector
      Interface Detail :BrandModelQuantityPinsPitchPin Configuration
      JSTBHR-03VS-12 pcs3 pins4.0 mmBLL-3PINS-HNL
      Backlight Driver :No

      AUO G121SN01 V3 Interface Features

      Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
      3.3V (Typ.)200mA (Typ.)0.66W (Typ.)
      Interface Features :PositionSignalType
      -LVDS (1 ch, 6/8-bit)Connector
      Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
      STMMSB240420E1.25 mm20 pins1 pcsLVDS-20P1C8B-080B

      FAQ:

      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
