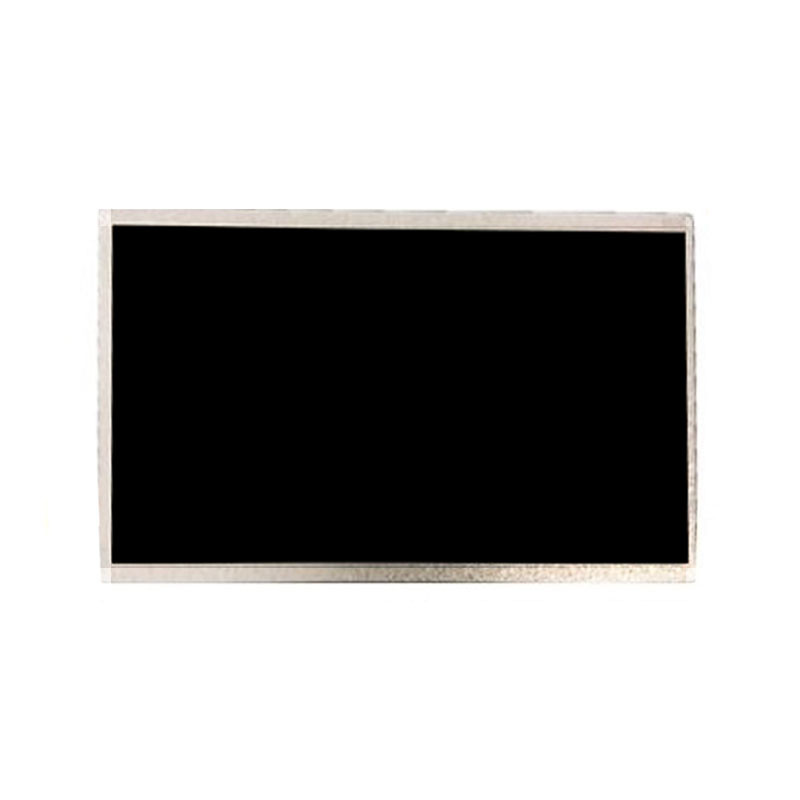

G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	G101EVT05.1
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	400PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO G101EVT05.1 Application Details

Basic Info :	Panel Brand Panel Model G101EVT05.1 Diagonal Size 10.1" Application Panel Type a-Si TFT-LCD , LCM Model Alias G101EVT05 V1
Reliability :	Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C RoHS State Vibration Rating -

Pixel Features :	Pixel Format 1280(RGB)×800, WXGA Dot Pitch 0.0565×0.1695 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.1695×0.1695 mm (H×V) [149PPI]
Mechanical Size :	Display Area 216.96×135.6 mm (H×V) Bezel Area - Outline Dim. 257.35×175.5 mm (H×V) Outline Depth 7.6 (Typ.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:10 (H:V) Shape Style
Touch Screen :	Touch Points - TP Signal I²C & USB TP Controller With touch controller Touchscreen PCAP
Other Features :	Weight 350g (Max.) Surface Antiglare (Haze 3%), Hard coating (3H), Reflection 1.5% (Max.) Panel Cover With Cover Lens

Basic Information :	Brightness 440 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode MVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 25 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 6485K Uniformity 1.43 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 47% sRGB 66% coverage Adobe RGB 49% coverage DCI-P3 49% coverage Rec.2020 35% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Back-light Features :	Lamp Type WLED Amount - Life Time 50K(Min.) (Hours) Replacement - Lamp Shape - Position Edge light type
Interface Features :	Type Included in panel signal interface Position - Lamp Driver With LED Driver
Driver Electrical :	Voltage Input 12.0V (Typ.) Current Input 300/480mA (Typ./Max.) Consumption 3.6/5.76W (Typ./Max.)

Signal Systerm :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 192/270mA (Typ./Max.) Consumption 0.63/0.89W (Typ./Max.)
Interface Features :	Type Connector Position
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS FH41-40S-0.5SH(05) 0.5 mm 40 pins 1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY
