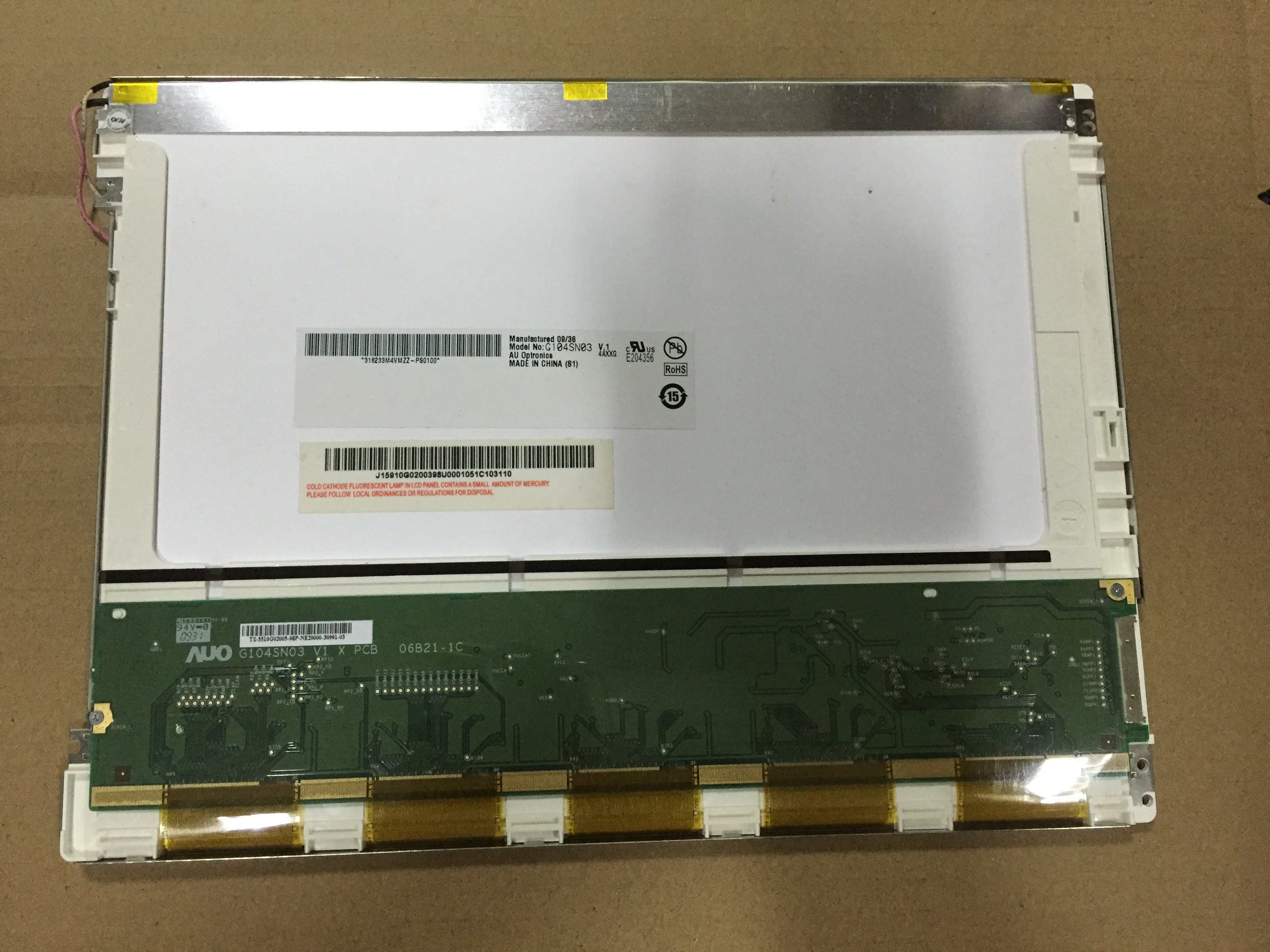

    G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G104SN03 V2
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 500PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY


    AUO G104SN03 V2 Application Details

    Basic Info :
    Panel Brand
    Panel Model
    G104SN03 V2
    Diagonal Size
    10.4"
    Application
    Panel Type
    a-Si TFT-LCD , LCM
    Model Alias
    G104SN03 V.2
    Reliability :
    Operating Temp.
    0 ~ 50 °C
    Storage Temp.
    -20 ~ 60 °C
    RoHS State
    Vibration Rating
    1.5G (14.7 m/s²)

    AUO G104SN03 V2 Mechanical Details

    Pixel Features :
    Pixel Format
    800(RGB)×600, SVGA
    Dot Pitch
    0.088×0.264 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.264×0.264 mm (H×V) [96PPI]
    Mechanical Size :
    Display Area
    211.2×158.4 mm (H×V)
    Bezel Area
    215.0×162.0 mm (H×V)
    Outline Dim.
    236×174.3 mm (H×V)
    Outline Depth
    7.7 (Max.) mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    4:3 (H:V)
    Shape Style
    Touch Screen :
    Touch Points
    1 point
    TP Signal
    -
    TP Controller
    Without touch controller
    Touchscreen
    4-wire Resistive Touch
    Holes & Brackets :
    Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
    Other Features :
    Weight
    400±10g
    Surface
    Antiglare, Hard coating (3H)

    AUO G104SN03 V2 Optical Details

    Basic Information :
    Brightness
    180 cd/m² (Typ.)
    Contrast Ratio
    500:1 (Typ.) (Transmissive)
    Viewing Angle
    60/60/35/65 (Typ.)(CR≥10)
    Optical Mode
    TN, Normally White, Transmissive
    Viewing Direction
    -
    Response Time
    10/25 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity
    Wx:0.320; Wy:0.330
    Color Numbers
    262K (6-bit)
    Color Temperature
    6116K
    Uniformity
    1.33 (Max.)(13 points)
    1931 Color Gamlt :
    NTSC Ratio
    47%
    sRGB
    64% coverage
    Adobe RGB
    49% coverage
    DCI-P3
    48% coverage
    Rec.2020
    35% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO G104SN03 V2 Backlight Details

    Back-light Features :
    Lamp Type
    CCFL
    Amount
    1 pcs
    Life Time
    20K(Typ.) (Hours)
    Replacement
    -
    Lamp Shape
    Straight
    Position
    Edge light type (Top side)
    Lamp Electrical :
    Voltage Input
    560±50V
    Current Input
    3.0/4.5/5.5mA (Min./Typ./Max.)
    Frequency
    60KHz (Typ.)
    Kick-off Voltage
    800/1050V (Max.)(Ta=+25/0℃)
    Consumption
    2.52W (Typ.)
    Interface Features :
    Type
    Connector
    Position
    -
    Lamp Driver
    No
    Interface Detail :
    Brand
    Model
    Pin Pitch
    Pins
    Amount
    Configuration
    JST
    BHSR-02VS-1
    3.5 mm
    2 pins
    1 pcs
    BLL-2PINS-HL

    AUO G104SN03 V2 Interface Detail

    Signal Systerm :
    LVDS (1 ch, 6-bit)
    Logic Voltage
    -
    Signal Electrical :
    Voltage Input
    3.3V (Typ.)
    Current Input
    260/310mA (Typ./Max.)
    Consumption
    0.76W (Typ.)
    Interface Features :
    Type
    Connector
    Position
    -
    Connector Detail :
    Brand
    Model
    Pin Pitch
    Pins
    Amount
    Configuration
    HRS
    DF19K-20P-1H
    1.0 mm
    20 pins
    1 pcs
    LVDS-20P1C6B-070A

    FAQ:

    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

    G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
