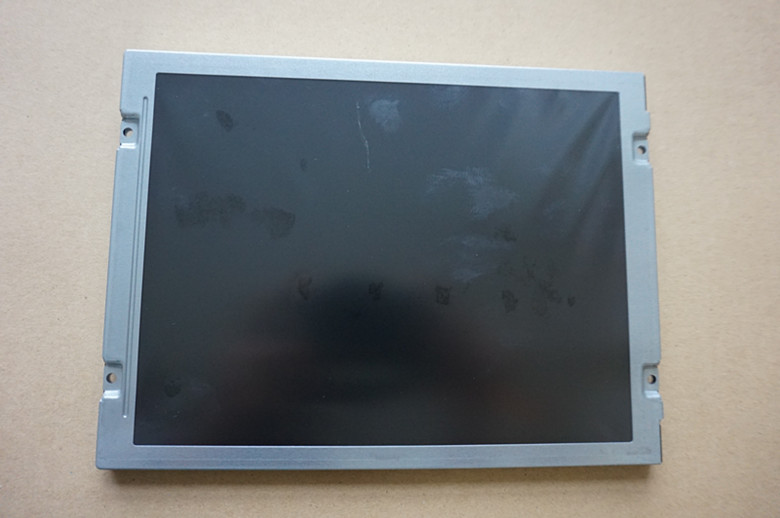

    AA084SD11 Mitsubishi 8.4 inch 800(RGB)×600 1200 cd/m² Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : Mitsubishi
    Model Number : AA084SD11
    Certification : ISO9001
    Price : USD130
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 300PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    AA084SD11 Mitsubishi 8.4 inch 800(RGB)×600 1200 cd/m² Operating Temperature: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Mitsubishi AA084SD11 Application Details

    Basic Info :Panel BrandPanel ModelAA084SD11
    Diagonal Size8.4"Application


    Panel Typea-Si TFT-LCD , LCMModel Alias-
    Reliability :Operating Temp.-30 ~ 80 °CStorage Temp.-30 ~ 80 °C
    RoHS StateVibration Rating1.0G (9.8 m/s²)

    Mitsubishi AA084SD11 Mechanical Details

    Pixel Features :Pixel Format800(RGB)×600 [SVGA]Dot Pitch0.071×0.213 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.213×0.213 mm (H×V) [119PPI]
    Mechanical Size :Display Area170.4×127.8 mm (H×V)Bezel Area174.9×132.2 mm (H×V)
    Outline Dim.199.5×149 mm (H×V)Outline Depth9.7 (Typ.) mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio4:3 (H:V)Shape Style
    Holes & Brackets :Face mounting holes (4-Φ3.4) on left, right bezel
    Other Features :WeightTBDSurfaceAntiglare, Hard coating (3H)

    Mitsubishi AA084SD11 Optical Details

    Basic Information :Brightness1200 cd/m² (Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
    Viewing Angle80/80/80/60 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction6 o'clockResponse Time4/12 (Typ.)(Tr/Td) (ms)
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K/16.7M (6-bit / 8-bit)
    Color Temperature6485KWhite Uniformity1.30 (Max.)(5 points)
    1931 Color Gamut :NTSC Ratio39%sRGB54% coverage
    Adobe RGB41% coverageDCI-P341% coverage
    Rec.202029% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmittance

    Mitsubishi AA084SD11 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (180°)
    Power Consumption :6.6W (Typ.)

    Mitsubishi AA084SD11 Backlight Details

    Back-light Features:Lamp Shape2 stringsLamp TypeWLEDLife Time100K(Typ.) (Hours)
    Replacement-Amount2 stringsPositionEdge light type
    Lamp Electrical :Voltage Input21.9/25.3V (Typ./Max.)Current Input125/135mA (Typ./Max.)
    Consumption5.48W (Typ.)
    Interface Features :TypeConnectorPosition-Lamp DriverNo
    Interface Detail :BrandModelPin PitchPinsAmountConfiguration
    JSTSM06B-SHLS-TF1.0 mm6 pins1 pcsBLE-6PINS-NNCAAC

    Mitsubishi Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input350/540mA (Typ./Max.)
    Interface Features :TypeConnectorPosition-
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    I-PEX20186-020E-11F1.25 mm20 pins1 pcsLVDS-20P1C8B-010H

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 199.5(W)×149(H) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, AA084SD11 can provides 1200 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA084SD11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
