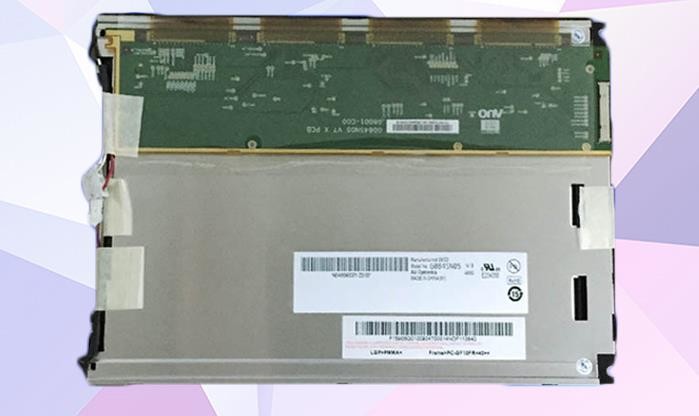

G084SN05 V4 AUO 8.4INCH 800×600RGB 350CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	G084SN05 V4
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	95PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO G084SN05 V4 Application Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	10/25 (Typ.)(Tr/Td) (ms)
	Viewing Angle	60/60/60/40 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Support Color	262K (6-bit)
Color Performance :	Color Temperature	6638K	White Uniformity	1.60 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	47%	sRGB	64% coverage
	Adobe RGB	49% coverage	DCI-P3	48% coverage
	Rec.2020	35% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Pixel Features :	Number of Pixel	800(RGB)×600 [SVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.071×0.213 mm	Pixel Pitch(W×H)	0.213×0.213 mm [119PPI]
Physical Size :	Active Viewing	170.4(W)×127.8(H) mm	Overall Dim.	203(W)×142.5(H) mm
Physical Size :	Bezel Opening	174.15(W)×131.2(H) mm	Overall Depth	9.8±0.3 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Touchscreen :	TP Controller	-	TP Interface	-
Touchscreen :	Touch Points	-	TP Technology	4-wire Resistive Touch
Fixation :	Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Detail :	Mass	340±10g	Surface	-

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Edge light type (Top and Bottom)
Lamp Features:	Exchange	-	Amount	2 pcs	Life	50K(Typ.) (Hours)
Lamp Electrical :	Input Current	4.0/6.0/7.0mA (Min./Typ./Max.)		Input Voltage	363.6/400/440V (Min./Typ./Max.)
	Frequency	40/55/80KHz (Min./Typ./Max.)		Turn-on Voltage	670/870V (Max.)(Ta=+25/0℃)
	Consumption	4.36/4.8/5.28W (Min./Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BHR-03VS-1	2 pcs	4.0 mm	3 pins	BLL-3PINS-HNL
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G084SN05 V4 AUO 8.4INCH 800×600RGB 350CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY
