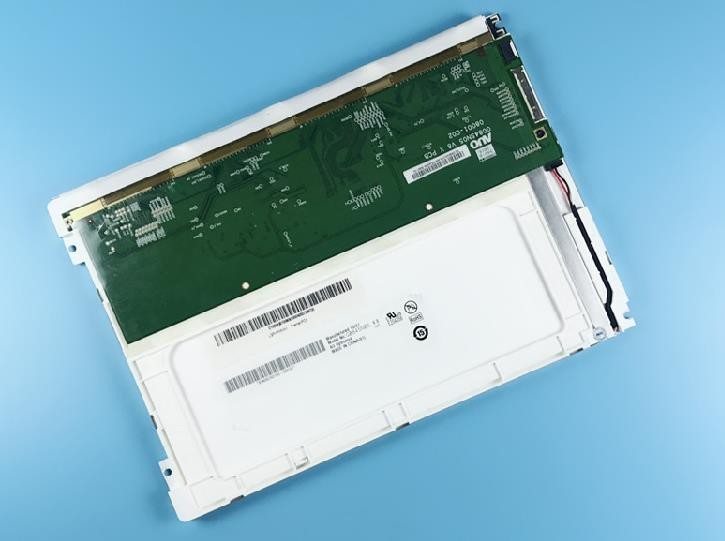

G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	G084SN05 V8
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	200PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO G084SN05 V8 Application Details

Basic Information :	Brand Model G084SN05 V8 Type a-Si TFT-LCD , LCM Used For Screen Size 8.4 inch Alias G084SN05 V.8
Environment :	Storage Temp. -30 ~ 85 °C Operating Temp. -30 ~ 85 °C RoHS 1.5G (14.7 m/s²)Vibration

Pixel Features :	Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.071×0.213 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.213×0.213 (H×V) [119PPI]
Mechanical Size :	Active Area(mm) 170.4(H) × 127.8(V) Bezel Area(mm) 174.15(H) × 131.2(V) Outline Dim.(mm) 203(H) × 142.5(V) Depth(mm) 8.3 (Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Spec :	Weight 250±10g Treatment Antiglare, Hard coating (3H)

Basic Information :	Luminance(cd/m²) 450 (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 12 o'clock Response(ms) 20/10 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.310; Wy:0.330 Display Colors 262K/16.2M (6-bit / 6-bit + FRC) Color Temperature 6638K White Uniformity 1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 43% sRGB 60% coverage Adobe RGB 45% coverage DCI-P3 45% coverage Rec.2020 32% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 270/330mA (Typ./Max.) Consumption 0.9/1.2W (Typ./Max.)
Signal Type :	LVDS (1 ch, 6/8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration STM MSB24013P20HA 1.0 mm 20 pins 1 pcs LVDS-20P1C8B-140A

Backlight Features :	Type WLED Quantity 2 strings Position Edge light type (Bottom side) Replacement Replaceable Shape 2 strings Life Time 50K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 38.4/43.8V (Typ./Max.) Current Supply 40/42mA (Typ./Max.) Consumption 3.07W (Typ.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration E&T 3808K-F04N-02R 1.25 mm 4 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 12.0V (Typ.) Current Supply 0.27A (Typ.) Consumption 3.24/3.40W (Typ./Max.)

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
