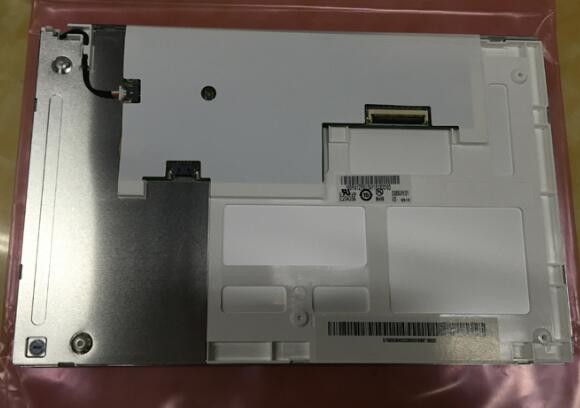

    G085VW01 V3 AUO 8.5INCH 800×480RGB 200CD/M2 WLED TTL Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G085VW01 V3
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 200PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G085VW01 V3 AUO 8.5INCH 800×480RGB 200CD/M2 WLED TTL Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

    AUO G085VW01 V3 Application Details

    Basic Information :BrandModelG085VW01 V3
    TypeLCM a-Si TFT-LCDUsed For
    Screen Size8.5"AliasG085VW01 V.3
    Environment :Storage Temp.-20 ~~ 70 °COperating Temp.-20 ~~ 70 °C
    RoHSVibration1.5G (14.7 m/s²)
    Typical Features :



    Remarks :Mass production from Feb. 2011

    AUO G085VW01 V3 Mechanical Details

    Pixel Features :Resolution800(RGB)×480, WVGADot Pitch(mm)0.077×0.231 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.231×0.231 (H×V) [109PPI]
    Mechanical Size :Active Area(mm)184.8(H) × 110.88(V)Bezel Area(mm)189.8(H) × 115.88(V)
    Outline Dim.(mm)210(H) × 134(V)Depth(mm)10.0±0.5
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio15:9 (H:V)OrientationLandscape type
    Mounting :Rear mounting holes
    Other Spec :Weight320g (Typ.)TreatmentAntiglare, Hard coating (3H)

    AUO G085VW01 V3 Optical Details

    Basic Information :Luminance(cd/m²)200 (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
    Viewing Angle80/80/80/60 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
    Best View on-Response(ms)20/10 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.300; Y:0.320Display Colors262K (6-bit)
    Color Temperature7351KWhite Uniformity1.33/1.43 (Typ./Max.)(9 points)
    1931 Color Gamut :NTSC Ratio49%sRGB69% coverage
    Adobe RGB51% coverageDCI-P351% coverage
    Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO G085VW01 V3 Interface Details

    Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply135/150/200mA (Min./Typ./Max.)
    Consumption0.5W (Typ.)
    Signal Type :CMOS (1 ch, 6-bit)Signal Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Interface Features :Position-TypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    STARCONN089H40-001100-G2-R1 pcs40 pins0.5 mmDRGB-40P1C6B-050B

    FAQ:

    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
