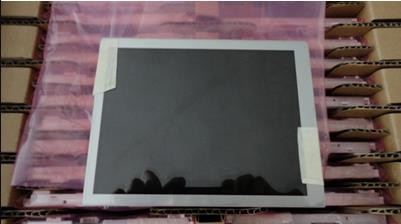

    G065VN01 V0 AUO 6.5INCH 640×480RGB 500CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G065VN01 V0
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 180PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G065VN01 V0 AUO 6.5INCH 640×480RGB 500CD/M2 CCFL LVDS Storage Temp.: -20 ~ 80 °C INDUSTRIAL LCD DISPLAY

    AUO G065VN01 V0 Application Details

    Basic Information :BrandModelG065VN01 V0
    TypeLCM a-Si TFT-LCDUsed For
      Screen Size6.5"AliasG065VN01 V.0
      Environment :Storage Temp.-20 ~~ 80 °COperating Temp.-20 ~~ 70 °C
      RoHSVibration1.5G (14.7 m/s²)

      AUO G065VN01 V0 Mechanical Details

      Pixel Features :Resolution640(RGB)×480, VGADot Pitch(mm)0.069×0.207 (H×V)
      Pixel FormatRGB Vertical StripePixel Pitch(mm)0.207×0.207 (H×V) [122PPI]
      Mechanical Size :Active Area(mm)132.48(H) × 99.36(V)Bezel Area(mm)135.9(H) × 102.8(V)
      Outline Dim.(mm)153(H) × 118(V)Depth(mm)10.7±0.5
      Outline Features :Form StyleFlat RectangleOutline Shape
      Aspect Ratio4:3 (H:V)OrientationLandscape type
      Mounting :Side mounting holes (4-M2) on left, right bezel
      Other Spec :Weight200g (Typ.)TreatmentAntiglare, Hard coating (3H)

      AUO G065VN01 V0 Optical Details

      Basic Information :Luminance(cd/m²)500 (Typ.)Contrast Ratio600:1 (Typ.) (Transmissive)
      Viewing Angle80/80/70/70 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
      Best View on6 o'clockResponse(ms)15/10 (Typ.)(Tr/Td)
      Color Performance :White CoordinateX:0.313; Y:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
      Color Temperature6485KWhite Uniformity1.25/1.67 (Max.)(5/13 points)
      1931 Color Gamlt :NTSC Ratio58%sRGB79% coverage
      Adobe RGB61% coverageDCI-P360% coverage
      Rec.202043% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

      AUO G065VN01 V0 Electronics Details

      Frame Rate :60Hz
      Reverse Scan :Yes (180°)
      Power Consumption :3.65/4.41W (Typ./Max.)

      AUO G065VN01 V0 Interface Details

      Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply185/265mA (Typ./Max.)
      Consumption0.61/0.87W (Typ./Max.)
      Signal Type :LVDS (1 ch, 6/8-bit)Signal Voltage-
      Interface Features :Position-TypeConnector
      Interface Detail :BrandModelQuantityPinsPitchPin Configuration
      HRSDF9B-31P-1V1 pcs31 pins1.0 mm

      AUO G065VN01 V0 Backlight Details

      Backlight Features:Shape-TypeCCFLPositionEdge light type (Bottom side)
      ReplacementReplaceableQuantity2 pcsLife Time50K(Min.) (Hours)
      Lamp Electrical :Voltage Supply380±38VCurrent Supply2.0/5.0/6.5mA (Min./Typ./Max.)
      Frequency40/50/60KHz (Min./Typ./Max.)Startup Voltage650/1430V (Max.)(Ta=+25/-20℃)
      Consumption3.80W (Typ.)
      Interface Features :Position-TypeConnector
      Interface Detail :BrandModelQuantityPinsPitchPin Configuration
      JSTBHR-04VS-11 pcs4 pins4.0 mmBLL-4PINS-HHNL
      Backlight Driver :No

      FAQ:


      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
