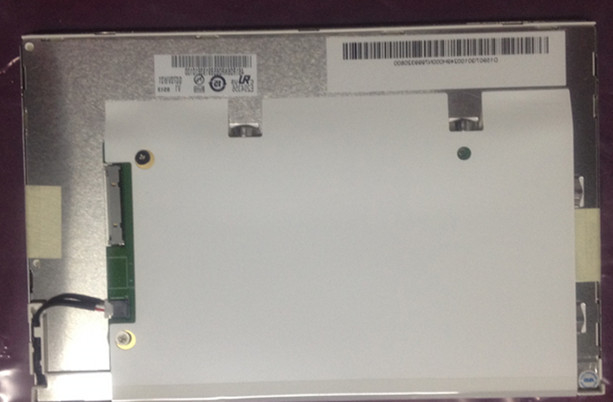

    G070VW01 V1 AUO 7INCH 800×480RGB 350CD/M2 WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G070VW01 V1
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 2000PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    G070VW01 V1 AUO 7INCH 800×480RGB 350CD/M2 WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

    AUO G070VW01 V1 Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    G070VW01 V1a-Si TFT-LCD , LCMG070VW01 V.1
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    ,-20 ~ 70 °C-20 ~ 70 °C-

    AUO G070VW01 V1 Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    350 (Typ.)65/65/50/60 (Typ.)(CR≥10)12/18 (Typ.)(Tr/Td)
    Best View onDisplay ModeContrast Ratio
    -TN, Normally White, Transmissive500 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    7351K262K/16.2M (6-bit / 6-bit + FRC)X:0.300; Y:0.320
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    49%69%52%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    51%37%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Variation :1.30 (Max.)(5 points)

    AUO G070VW01 V1 Mechanical Features

    Panel Size :7.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    800(RGB)×480 [WVGA]RGB Vertical Stripe0.1905×0.1905 [133PPI]0.0635×0.1905
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    152.4(H) × 91.44(V)154.4(H) × 93.44(V)170(H) × 111(V)5.0/8.5 (Typ./Max.) mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type15:9 (H:V)
    Mounting :Without
    Other Detail :WeightPanel CoverTreatment
    175g-Antiglare, Hard coating (3H)

    AUO G070VW01 V1 Electronics Features

    Reverse Scan :Yes (U/D, L/R)
    Vertical Frequency :60Hz
    Power Consumption :3.4W (Typ.)

      AUO G070VW01 V1 Backlight Features

      Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
      WLEDEdge light type--30K(Typ.)Replaceable
      Interface Features :PositionBacklight DriverType
      -With LED DriverConnector
      Interface Detail :BrandModelPin PitchPin AmountQuantityConfiguration
      JSTSM06B-SHLS-TF(LF)(SN)1.0 mm6 pins1 pcs
      Driver Electrical :Voltage SupplyCurrent SupplyPower Consumption
      5.0±0.5V0.6A (Typ.)3.0/3.3W (Typ./Max.)

      AUO G070VW01 V1 Interface Features

      Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
      3.3V (Typ.)100/120mA (Typ./Max.)0.33/0.43W (Typ./Max.)
      Interface Features :PositionSignalType
      -LVDS (1 ch, 6/8-bit)Connector
      Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
      HRSDF19LA-20P-1H1.0 mm20 pins1 pcsLVDS-20P1C8B-140A

      FAQ:

      Q1: What's the quality of your LCD Panel?


      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


      Q2: What is your return and refund policy?


      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


      Q3: How long is the lead time?


      A: The lead time is about 1-3 working days after receipt of payment.


      Q4: How can I get the quotation?


      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


      G070VW01 V1 AUO 7INCH 800×480RGB 350CD/M2 WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY
