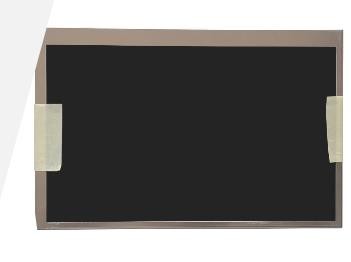

C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	C090EAN01.1
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	180PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO C090EAN01.1 Application Details

Pixel Features :	Pixel Format 1280(RGB)×720, WXGA Dot Pitch 0.05175×0.15525 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.15525×0.15525 mm (H×V) [163PPI]
Mechanical Size :	Display Area 198.72×111.78 mm (H×V) Bezel Area 202.02×114.74 mm (H×V) Outline Dim. 210×126.8 mm (H×V) Outline Depth 7.1 (Typ.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style
Other Features :	Weight TBD Surface Antiglare

Basic Information :	Brightness 680 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Optical Mode AHVA, Normally Black, Transmissive Viewing Direction Symmetry Response Time 15/15 (Max.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.298; Wy:0.314 Color Numbers 16.7M (8-bit) Color Temperature 7589K Uniformity 1.25 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 70% sRGB 96% coverage Adobe RGB 72% coverage DCI-P3 73% coverage Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Frame Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)

Back-light Features :	Lamp Type WLED Amount 6S3P Life Time 10K(Min.) (Hours) Replacement - Lamp Shape 3 strings Position Edge light type
Lamp Electrical :	Voltage Input 20.4V (Max.) Current Input 80/85mA (Typ./Max.) Consumption 4.9W (Max.)
Interface Features :	Type FPC Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration 0.5 mm 8 pins 1 pcs BLE-8PINS-AAANNCCC

Signal Systerm :	LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3/3.3V (Typ.)(VDD/VDDA) Current Input 150/420mA (Typ.)(IDD/IDDA)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS FH52-40S-0.5SH 0.5 mm 40 pins 1 pcs

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
