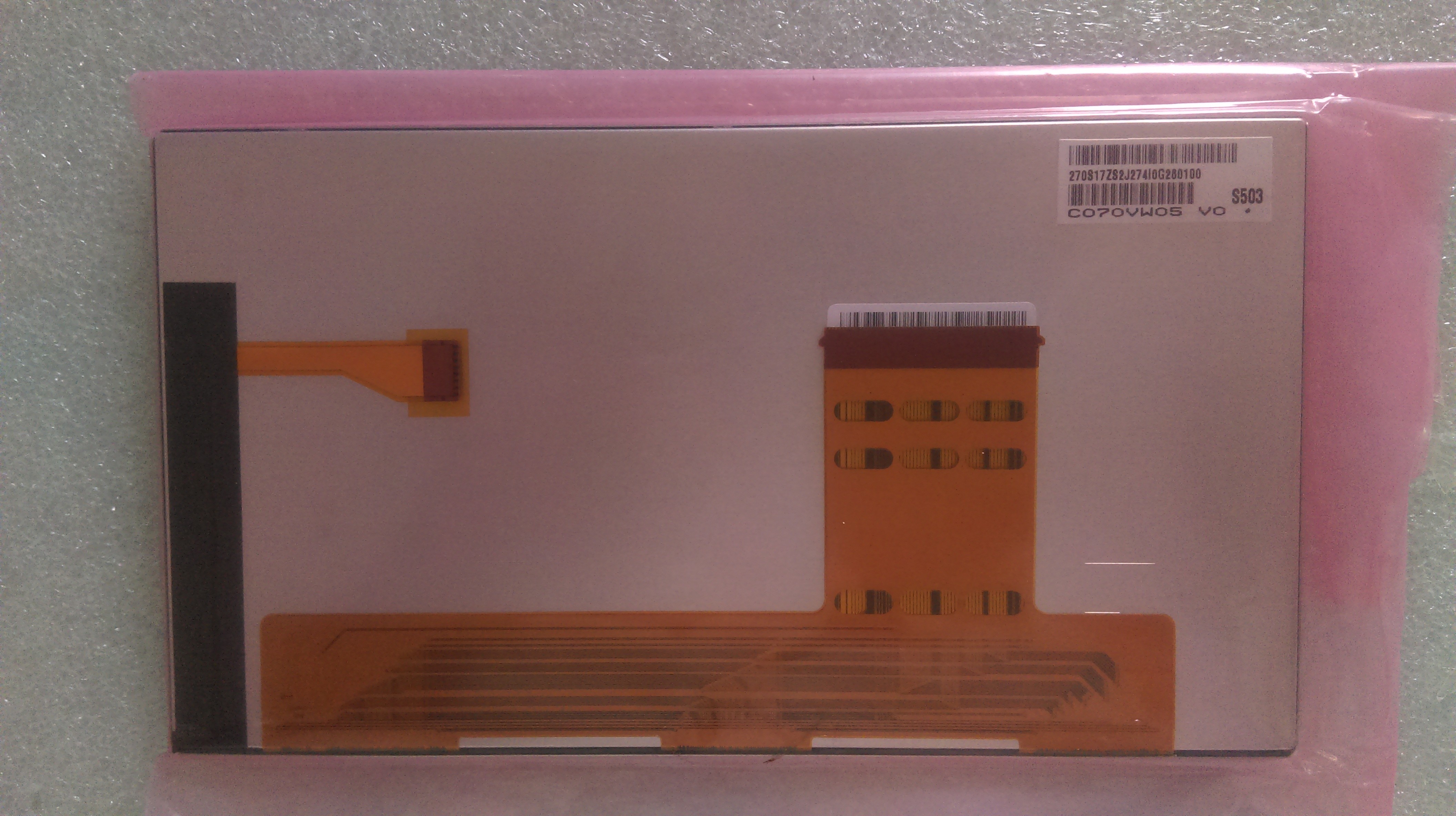

C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	AUO
Model Number :	C070VW05 V1
Certification :	ISO9001
Price :
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :	100PCS
Delivery Time :	1-2 DAYS

Add to Cart

AUO C070VW05 V1 Application Details

Basic Detail :	Manufacturer Model Name C070VW05 V1 Panel Type a-Si TFT-LCD , LCM Another Name C070VW05 V.1 Panel Size 7.0 inch Designed For
Maximum Ratings :	OP Temperature -30 ~ 85 °C ST Temperature -40 ~ 95 °C RoHS Vibration Level 2.9G (28.4 m/s²)

Basic Detail :	Luminance 500 cd/m² (Typ.) Contrast Ratio 300:1 (Typ.) (Transmissive) Good View at 12 o'clock Response Speed 15/20 (Typ.)(Tr/Td) ms Viewing Angle 65/65/65/50 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.310; Wy:0.330 Support Color 262K (6-bit) Color Temperature 6638K White Variation 1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 49% sRGB 69% coverage Adobe RGB 51% coverage DCI-P3 51% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Pixel Features :	Number of Pixel 800(RGB)×480, WVGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0655×0.1715 mm Pixel Pitch(W×H) 0.1965×0.1715 mm [133PPI]
Physical Size :	Active Viewing 157.2(W)×82.32(H) mm Overall Dim. 167(W)×93(H) mm Bezel Opening 159.0(W)×84.12(H) mm Overall Depth 7.0±0.3 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 17:9 Shape Style
Fixation :	Without
Other Detail :	Mass 170g (Typ.) Surface Antiglare

Signal Electrical :	Input Current 2.5/18.0/0.16/0.17mA (Typ.)(ICC/AIDD/IGH/IGL) Input Voltage 3.3/9.8/19/-8V (Typ.)(VCC/AVDD/VGH/VGL) Consumption 0.5W Signal Interface Parallel RGB (1 ch, 6-bit)
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 60 pins 1 pcs

Lamp Features :	Lamp Type WLED Amount 3 strings Position Edge light type Exchange - Lamp Shape 3 strings Lamp Life 10K(Min.) (Hours)
Lamp Electrical :	Input Voltage 14.4/16.0V (Typ./Max.) Input Current 80/85mA (Typ./Max.) Consumption 3.46W
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 1.0 mm 8 pins 1 pcs BLE-8PINS-AANCCCNN
Backlight Driver :	No

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
