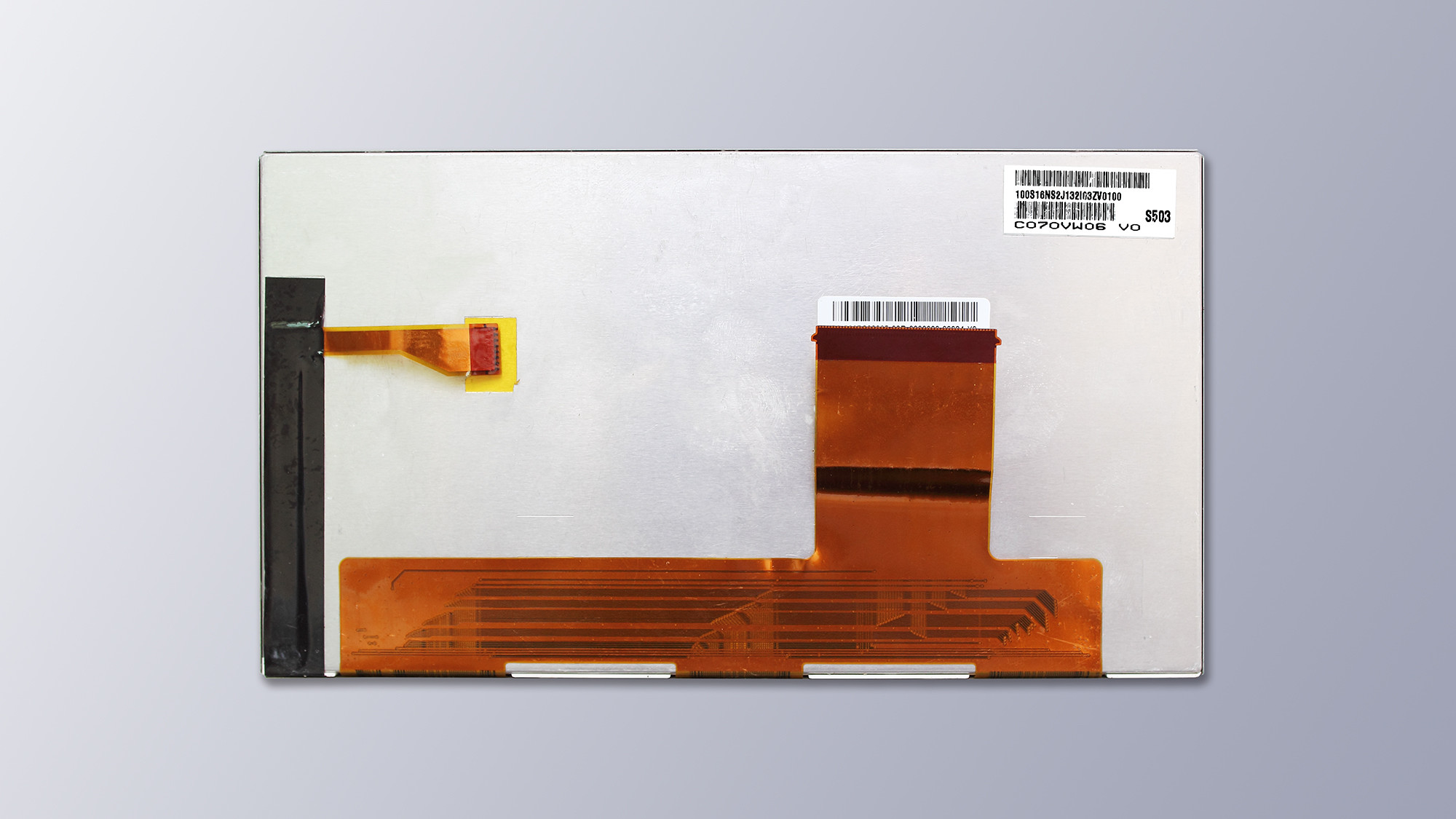

    C070VW06 V0 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : C070VW06 V0
    Certification : ISO9001
    Price :
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 1116PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    C070VW06 V0 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

    AUO C070VW06 V0 Application Details

    Basic Information :BrandModelC070VW06 V0
    TypeLCM a-Si TFT-LCDUsed For
    Screen Size7.0"AliasC070VW06 V.0
    Environment :Storage Temp.-40 ~~ 95 °COperating Temp.-30 ~~ 85 °C
    RoHSVibration2.9G (28.4 m/s²)

    AUO C070VW06 V0 Mechanical Details

    Pixel Features :Resolution800(RGB)×480, WVGADot Pitch(mm)0.0655×0.1715 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.1965×0.1715 (H×V) [133PPI]
    Mechanical Size :Active Area(mm)157.2(H) × 82.32(V)Bezel Area(mm)159.0(H) × 84.12(V)
    Outline Dim.(mm)167(H) × 93(V)Depth(mm)7.0±0.3
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio17:9 (H:V)OrientationLandscape type
    Mounting :Without
    Other Spec :Weight170g (Max.)TreatmentAntiglare

    AUO C070VW06 V0 Optical Details

    Basic Information :Luminance(cd/m²)500 (Typ.)Contrast Ratio300:1 (Typ.) (Transmissive)
    Viewing Angle65/65/50/65 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
    Best View on6 o'clockResponse(ms)15/20 (Typ.)(Tr/Td)
    Color Performance :White CoordinateX:0.321; Y:0.334Display Colors262K (6-bit)
    Color Temperature6046KWhite Uniformity1.33/1.43 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio50%sRGB70% coverage
    Adobe RGB52% coverageDCI-P352% coverage
    Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO C070VW06 V0 Electronics Details

    Frame Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Power Consumption :3.86W (Typ.)
    Time Controller (T-CON) :Need external T-CON

    AUO C070VW06 V0 Interface Details

    Signal Electrical :Voltage Supply3.3/9.8/19/-9V (Typ.)(VCC/AVDD/VGH/VHL)Current Supply5.2/37/0.23/0.24mA (Max.)(ICC/AIDD/IGH/IGL)
    Consumption0.497W
    Signal Type :Parallel RGB (1 ch, 6-bit)Signal Voltage-
    Interface Features :Position-TypeFPC
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    1 pcs60 pins0.5 mm

    AUO C070VW06 V0 Backlight Details

    Backlight Features:Shape3 stringsTypeWLEDPositionEdge light type
    Replacement-Quantity4S3PLife Time10K(Min.) (Hours)
    Lamp Electrical :Voltage Supply14/16V (Typ./Max.)Current Supply80/85mA (Typ./Max.)
    Consumption3.36W (Typ.)
    Interface Features :Position-TypeFPC
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    1 pcs8 pins1.0 mmBLE-8PINS-AANCCCNN
    Backlight Driver :No

    FAQ:

    Q1: What's the quality of your LCD Panel?


    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2: What is your return and refund policy?


    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3: How long is the lead time?


    A: The lead time is about 1-3 working days after receipt of payment.


    Q4: How can I get the quotation?


    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


    C070VW06 V0 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
