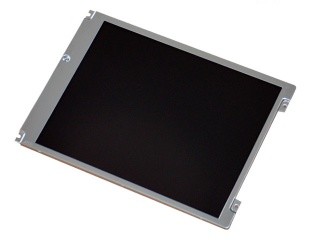

C080VTN03.1 Automotive TFT Displays Parallel RGB (1 ch, 6-bit) Without Driverr

Ask Lasest Price
Brand Name :	AUO
Model Number :	C080VTN03.1
Certification :	ISO9001
Payment Terms :	T/T, Western Union, PAYPAL, ESCROW
Supply Ability :	500PCS/MONTH
Delivery Time :	1-3 days

Add to Cart

Product Details
Company Profile

C080VTN03.1 Automotive TFT Displays Parallel RGB (1 ch, 6-bit) Without Driverr

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2.AUO C080VTN03.1 Mechanical Details:

Pixel Features :	Pixel Format	800(RGB)×480 [WVGA]	Dot Pitch	0.073×0.219 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.219×0.219 mm (H×V) [115PPI]
Mechanical Size :	Display Area	175.2×105.12 mm (H×V)	Bezel Area	178.1×108.47 mm (H×V)
Mechanical Size :	Outline Dim.	186.5×117.12 mm (H×V)	Outline Depth	5.3±0.3 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	15:9 (H:V)	Shape Style
Other Features :	Weight	-	Surface	Antiglare, Hard coating (3H)

3.AUO C080VTN03.1 Optical Details:

Basic Information :	Brightness	500 cd/m² (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Viewing Angle	60/60/40/60 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	15/20 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	6638K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	69%	sRGB	92% coverage
	Adobe RGB	71% coverage	DCI-P3	72% coverage
	Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

4.AUO C080VTN03.1 Interface Details:

Signal Systerm :	Parallel RGB (1 ch, 6-bit)			Logic Voltage	0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Signal Electrical :	Voltage Input	3.3/11.0/20.0/-8.0V (Typ.)(VCC/AVDD/VGH/VGL)		Current Input	3.0/20/0.15/0.15mA (Typ.)(ICC/AIDD/IGH/IGL)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	FH28-60S-0.5SH	0.5 mm	60 pins	1 pcs

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
