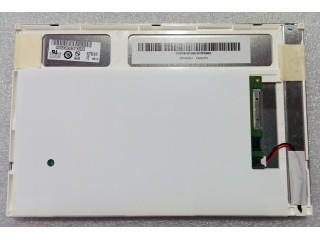

G070VW01 V0 7.0 AUO WLED , 80/80/80/80 (Typ.)(CR≥10) 400 cd/m² (Typ.)

1. HIGHEST QUALITY STANDARD DISPLAYS:

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2. AUO G070VW01 V0 Mechanical Details

Pixel Features :	Pixel Format	800(RGB)×480 [WVGA]	Dot Pitch	0.0635×0.1905 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size :	Display Area	152.4×91.44 mm (H×V)	Bezel Area	155.2×94.24 mm (H×V)
Mechanical Size :	Outline Dim.	170×111 mm (H×V)	Outline Depth	7.5±0.5 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	15:9 (H:V)	Shape Style
Holes & Brackets :	Without
Other Features :	Weight	165/175g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

3. AUO G070VW01 V0 Optical Details

Basic Information :	Brightness	400 cd/m² (Typ.)	Contrast Ratio	750:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	-	Response Time	20/10 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.330	Color Numbers	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6638K	White Uniformity	1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	59%	sRGB	83% coverage
	Adobe RGB	62% coverage	DCI-P3	62% coverage
	Rec.2020	44% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G070VW01 V0 Application Details

Basic Info :	Panel Brand		Panel Model	G070VW01 V0
	Diagonal Size	7.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	G070VW01 V.0, G070VW01.0
Reliability :	Operating Temp.	-30 ~ 85 °C	Storage Temp.	-30 ~ 85 °C
Reliability :	RoHS State		Vibration Rating	1.5G (14.7 m/s²)

AUO G070VW01 V0 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	3.7W (Typ.)

AUO G070VW01 V0 Backlight Details

Back-light Features:	Lamp Shape	1 string	Lamp Type	WLED	Life Time	50K(Min.) (Hours)
Back-light Features:	Replacement	Replaceable	Amount	-	Position	Edge light type
Lamp Electrical :	Voltage Input	32.0/36.5V (Typ./Max.)		Current Input	80/84mA (Typ./Max.)
Lamp Electrical :	Consumption	2.56W (Typ.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	With LED Driver
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	E&T	3808K-F04N-02R	1.25 mm	4 pins	1 pcs
Driver Electrical :	Voltage Input	12.0V (Typ.)		Current Input	240mA (Typ.)
Driver Electrical :	Consumption	2.88/3.6W (Typ./Max.)

AUO G070VW01 V0 Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	0.24/0.26A (Typ./Max.)
Signal Electrical :	Consumption	0.8/0.96W (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	DF19LA-20P-1H	1.0 mm	20 pins	1 pcs	LVDS-20P1C8B-140A
