    B084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : AUO
    Model Number : B084SN03 V0
    Certification : ISO9001
    Price : USD55
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    B084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

    AU Optronics B084SN03 V0 Application Details

    Basic Detail :ManufacturerModel NameB084SN03 V0
    Panel Typea-Si TFT-LCD , LCMAnother NameB084SN03 V.0
    Panel Size8.4 inchDesigned For
    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C
    Vibration Level-RoHS

    AU Optronics B084SN03 V0 Optical Details

    Basic Information :Luminance220 cd/m² (Typ.)Contrast Ratio350 : 1 (Typ.) (Transmissive)
    Good View at12 o'clockResponse Speed10/25 (Typ.)(Tr/Td) (ms)
    Viewing Angle60/60/60/40 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.310; Wy:0.330Support Color262K (6-bit)
    Color Temperature6638KWhite Uniformity1.60 (Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio48%sRGB66% coverage
    Adobe RGB50% coverageDCI-P349% coverage
    Rec.202036% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AU Optronics B084SN03 V0 Mechanical Details

    Pixel Features :Number of Pixel800(RGB)×600 [SVGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.071×0.213 mmPixel Pitch(W×H)0.213×0.213 mm [119PPI]
    Physical Size :Active Viewing170.4(W)×127.8(H) mmOverall Dim.203(W)×142.5(H) mm
    Bezel Opening173.8(W)×131.2(H) mmOverall Depth5.7±0.3 mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)4:3Shape Style
    Fixation :Face mounting holes (2-Φ3.0, 2-R1.5)
    Other Detail :Mass215±10gSurface-

    AU Optronics B084SN03 V0 Electronics Details

    Reverse Scan :No
    Power Consumption :3.06W

    AU Optronics B084SN03 V0 Interface Details

    Signal Electrical :Input Current230mA (Typ.)Input Voltage3.3V (Typ.)
    Consumption0.76W (Typ.)Signal InterfaceLVDS (1 ch, 6-bit)
    Interface Features :Position-Physical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    HRSDF19K-20P-1H1 pcs1.0 mm20 pinsLVDS-20P1C6B-070A

    AU Optronics B084SN03 V0 Lightting Details

    Lamp Features:Lamp ShapeStraightLamp TypeCCFLPositionEdge light type (Bottom side)
    Exchange-Amount1 pcsLife20K(Typ.) (Hours)
    Lamp Electrical :Input Current3.0/4.6mA (Min./Typ.)Input Voltage490±49V
    Frequency50/60/80KHz (Min./Typ./MAX.)Turn-on Voltage820/1070V (Max.)(Ta=+25/0℃)
    Consumption2.3W (Typ.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTBHSR-02VS-11 pcs3.5 mm2 pinsBLL-2PINS-HL
    Backlight Driver :No

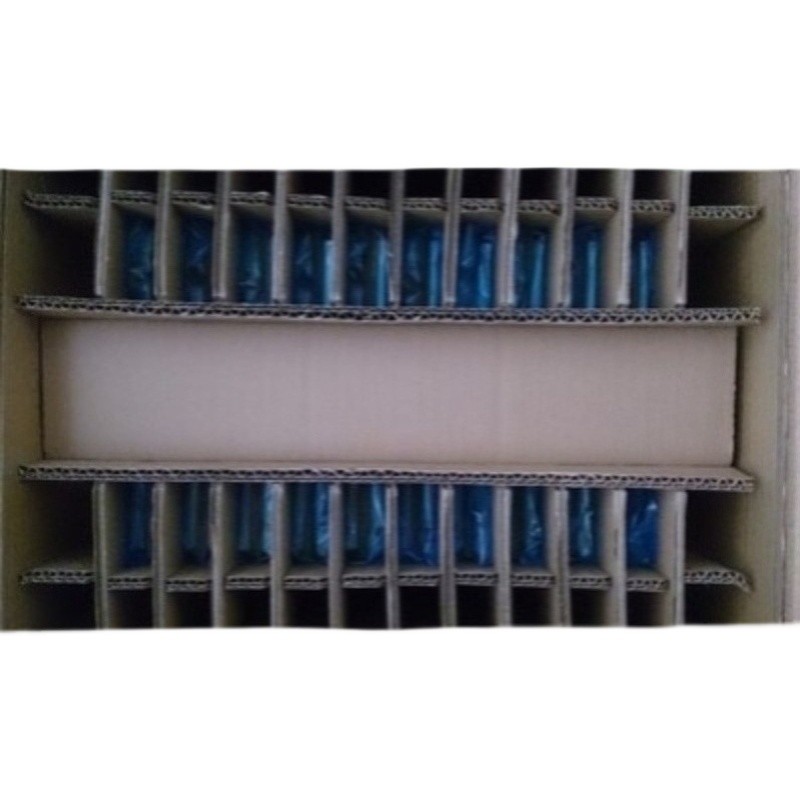

    AU Optronics B084SN03 V0 Packing Details

    Package Box :AmountSize (L×W×H)Weight
    30 pcs / box600×353×210 mm12 Kgs
