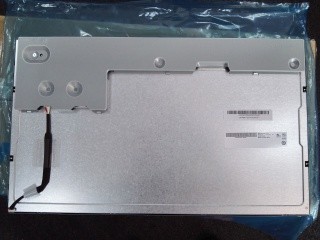

    G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G185HAN01.0
    Certification : ISO9002
    Price : USD70
    Payment Terms : T/T, Western Union, PAYPAL, ESCROW
    Supply Ability : 3000PCS/MONTH
    Delivery Time : 1-3 days
    • Product Details
    • Company Profile

    G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

    AUO G185HAN01.0 Mechanical Details

    Pixel Features :
    Pixel Format
    1920(RGB)×1080, FHD
    Dot Pitch
    0.071×0.213 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.213×0.213 mm (H×V) [119PPI]
    Mechanical Size :
    Display Area
    408.96×230.04 mm (H×V)
    Bezel Area
    410.96×232.04 mm (H×V)
    Outline Dim.
    430.4×254.6 mm (H×V)
    Outline Depth
    12.0±0.5 mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    16:9 (H:V)
    Shape Style
    Holes & Brackets :
    Side mounting holes (4-M3) on left, right bezel
    Other Features :
    Weight
    1.20Kgs (Typ.)
    Surface
    Antiglare, Hard coating (3H)

    AUO G185HAN01.0 Optical Details

    Basic Information :
    Brightness
    350 cd/m² (Typ.)
    Contrast Ratio
    1000:1 (Typ.) (Transmissive)
    Viewing Angle
    89/89/89/89 (Typ.)(CR≥10)
    Optical Mode
    AHVA, Normally Black, Transmissive
    Viewing Direction
    Symmetry
    Response Time
    10/10 (Typ.)(Tr/Td) ms
    Color Performance :
    Chromaticity
    Wx:0.299; Wy:0.315
    Color Numbers
    16.7M (8-bit)
    Color Temperature
    7502K
    Uniformity
    1.18/1.25 (Typ./Max.)(9 points)
    1931 Color Gamlt :
    NTSC Ratio
    73%
    sRGB
    99% coverage
    Adobe RGB
    76% coverage
    DCI-P3
    76% coverage
    Rec.2020
    55% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO G185HAN01.0 Application Features

    Basic Information :BrandModelTypeModel Alias
    G185HAN01.0a-Si TFT-LCD , LCM-
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    -20 ~ 70 °C-20 ~ 70 °C

    AUO G185HAN01.0 Electronics Features

    Power Consumption :16.5W (Typ.)
    Frame Rate :60Hz
    Reverse Scan :No

    AUO G185HAN01.0 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    0.8/1.0A (Typ./Max.)5.0V (Typ.)4.0/5.5W (Typ./Max.)
    Interface Features :PositionTypeInterface
    ConnectorLVDS (2 ch, 8-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    JAEFI-XB30SSRLA-HF161 pcs1.0 mm30 pinsLVDS-30P2C8B-160A

    AUO G185HAN01.0 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type7 strings9S7P50K(Min.)No
    WLED Electrical :Current InputVoltage InputConsumption
    55mA (Typ.)28.8/32.4V (Typ./Max.)12.5W (Max.)
    Interface Features :PositionTypeWLED Driver
    -ConnectorWith LED Driver
    Interface DetailBrandModelAmountPin PitchPinsPin Assignment
    E&T3808K-F05N-12R1 pcs1.25 mm5 pins
    Driver Electrical :Current InputVoltage InputConsumption
    1.04A (Typ.)12.0±1.2V12.5/13.6W (Typ./Max.)
