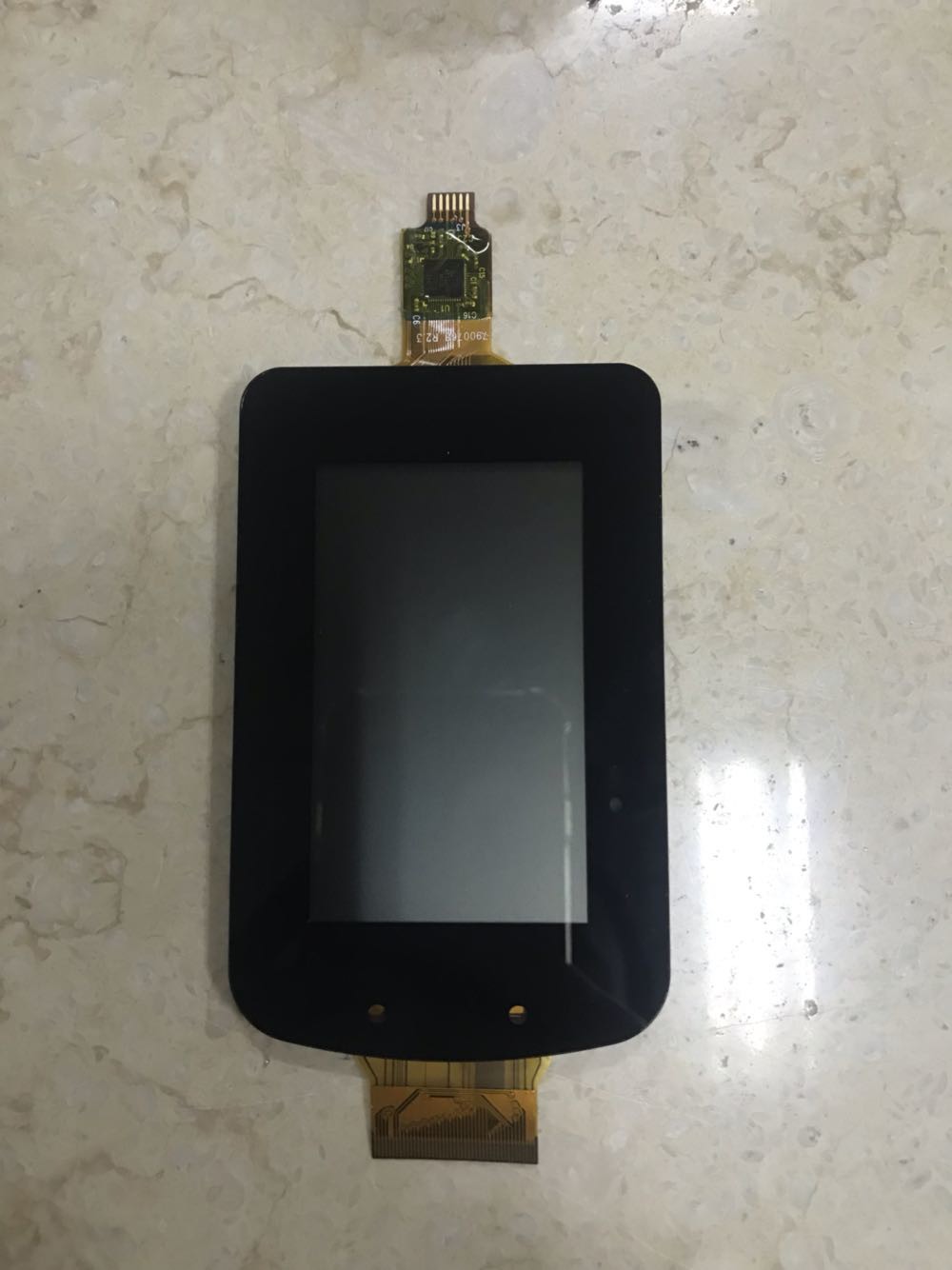

TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM030LDHT1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	3000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM030LDHT1 TIANMA 3.0" 440(RGB)×440 130 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM030LDHT1 Application Details

Basic Detail :	Manufacturer Model Name TM030LDHT1 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 3.0 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS Vibration Level -
Features :
Remarks :	R-EVT; Backlight: Serial 1LED 3LED 4LED Optional

IANMA TM030LDHT1 Optical Details

Basic Detail :	Luminance 130 cd/m² (Typ.) Contrast Ratio 100:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) Good View at 6 o'clock Response Speed 35 (Typ.)(Tr+Td) ms Viewing Angle 40/45/55/40 (Typ.)(CR≥10) Operating Mode ECB, Normally White, Transflective
Color Performance :	Chromaticity Wx:0.300; Wy:0.320 Support Color 65K/262K Color Temperature 7351K White Variation -
1931 Color Gamlt :	NTSC Ratio 34% sRGB 48% coverage Adobe RGB 36% coverage DCI-P3 36% coverage Rec.2020 26% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity - 3D Tech - Reflectance 6.85% (Typ.)

TIANMA TM030LDHT1 Mechanical Details

Pixel Features :	Number of Pixel 240(RGB)×400, WQVGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.054×0.162 mm Pixel Pitch(W×H) 0.162×0.162 mm [156PPI]
Physical Size :	Active Viewing 38.88(W)×64.8(H) mm Overall Dim. 47.28(W)×76.4(H) mm Bezel Opening 39.68(W)×65.6(H) mm Overall Depth 2.4±0.2 mm
Outline Features :	Form Shape Flat Rectangle Orientation Portrait type Aspect Ratio(W:H) 3:5 Shape Style
Other Detail :	Mass 18.3g Surface Clear, Hard coating (3H)

TIANMA TM030LDHT1 Electronics Details

Refresh Rate :	60Hz
Driver IC :	COG Built-in HX8352B

TIANMA TM030LDHT1 Interface Detail

Signal Electrical :	Input Current TBD Input Voltage 2.8/2.8V (Typ.)(IOVCC/VCC) Consumption 49.5mW (Typ.) Signal Interface CPU/RGB/SPI
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 0.5 mm 45 pins 1 pcs

TIANMA TM030LDHT1 Lightting Details

Lamp Features :	Lamp Type WLED Amount 4S1P Position Edge light type Exchange - Lamp Shape 1 string Lamp Life 20K(Typ.) (Hours)
Lamp Electrical :	Input Voltage 12.8V (Typ.) Input Current 20mA (Typ.) Consumption 256mW (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

TIANMA TM030LDHT1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	420 pcs / box	15.25±0.76 Kgs	530×351×226 mm
