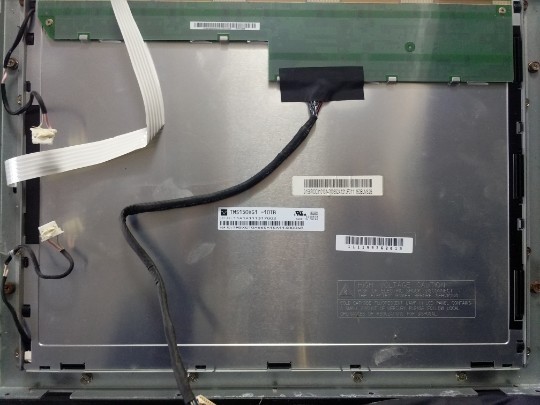

TMS150XG1-10TB AVIC 15.0" 1024(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	AVIC
Model Number :	TMS150XG1-10TB
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	1500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TMS150XG1-10TB AVIC 15.0" 1024(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

AVIC TMS150XG1-10TB Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TMS150XG1-10TB	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 55 °C	-20 ~ 60 °C	-
Used For :
Specific Features :
Remarks :	TC0’5.0 Compliance

AVIC TMS150XG1-10TB Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	250 (Typ.)	80/80/80/80 (Typ.)(CR≥10)	2/6 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	600 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	61%	83%	63%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	63%	45%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.20/1.30 (Typ./Max.)(9 points)

AVIC TMS150XG1-10TB Mechanical Features

Panel Size :	15.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1024(RGB)×768 [XGA]	RGB Vertical Stripe	0.297×0.297 [85PPI]	0.099×0.297
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	304.128(H) × 228.096(V)	307.4(H) × 231.3(V)	326.5(H) × 253.5(V)	11.3/12.0 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)	Normal bezel
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	1.00Kgs (Typ.)	-	Antiglare

AVIC TMS150XG1-10TB Electronics Features

Reverse Scan :	No
Vertical Frequency :	60Hz
Power Consumption :	10.1W (Typ.)

AVIC TMS150XG1-10TB Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type (Top and Bottom)	2 pcs	Straight	40K(Min.)	-
CCFL Electrical :	Voltage Supply		Current Supply			Power
	610±61V		3.5/7.0/7.5mA (Min./Typ./Max.)
	Operating Frequency			Kick-off Voltage
	50±10KHz			1100/1600V (Max.)(Ta=+25/0℃)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	BHR-03VS-1	4.0 mm	3 pins	2 pcs	BLL-3PINS-HNL

AVIC TMS150XG1-10TB Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		500/700mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	LVDS (1 ch, 8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	HRS	DF14H-20P-1.25H	1.25 mm	20 pins	1 pcs	LVDS-20P1C8B-020C

AVIC TMS150XG1-10TB Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	14 pcs / box	14.6 Kgs	378×368×315.5 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
