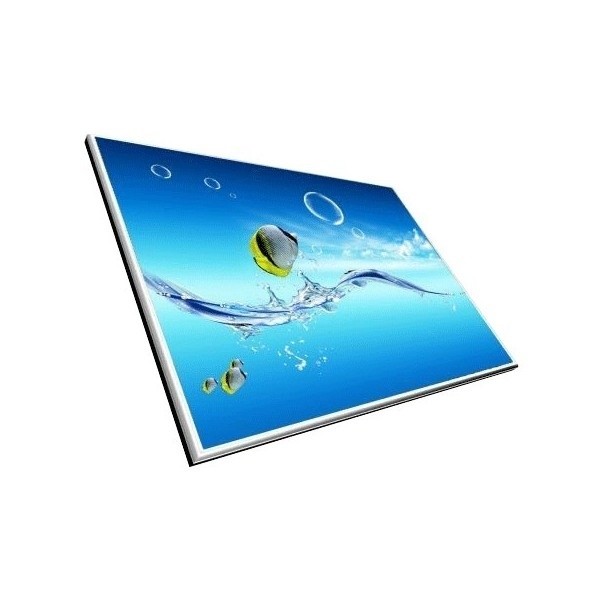

TL139VDXP01-01 TIANMA 13.9 inch 1920(RGB)×1080 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TL139VDXP01-01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	5000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TL139VDXP01-01 TIANMA 13.9 inch 1920(RGB)×1080 400 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TL139VDXP01-01 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1080 [FHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0534×0.1602 mm	Pixel Pitch(W×H)	0.1602×0.1602 mm [158PPI]
Physical Size :	Active Viewing	307.584(W)×173.016(H) mm	Overall Dim.	312.184(W)×183.116(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	2.3±0.1 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Fixation :	Without
Other Detail :	Mass	199±19g	Surface	Antiglare

TIANMA TL139VDXP01-01 Application Details

Basic Detail :	Manufacturer		Model Name	TL139VDXP01-01
	Panel Type	LTPS TFT-LCD , LCM	Another Name	-
	Panel Size	13.9 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	-	RoHS
Features :
Remarks :	eDP1.3; for Asus ZenBook S13 UX392 Laptop

TIANMA TL139VDXP01-01 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	15/15 (Typ.)(Tr/Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	SFT, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.50 (Max.)(5/13 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	100% coverage
	Adobe RGB	75% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TL139VDXP01-01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Driver IC :	COG Suggest CRX2000

TIANMA TL139VDXP01-01 Interface Details

Signal Electrical :	Input Current	-		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	435/478mW (Typ./Max.)	Signal Interface	eDP (2 Lanes)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :		20498-026E-41	1 pcs		26 pins

TIANMA TL139VDXP01-01 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	-
Lamp Electrical :	Input Current	16.5/20mA (Typ./Max.)		Input Voltage
Lamp Electrical :	Consumption	2.67/3.56W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

TIANMA TL139VDXP01-01 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	20 pcs / box	544×365×250 mm	9.84 Kgs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
