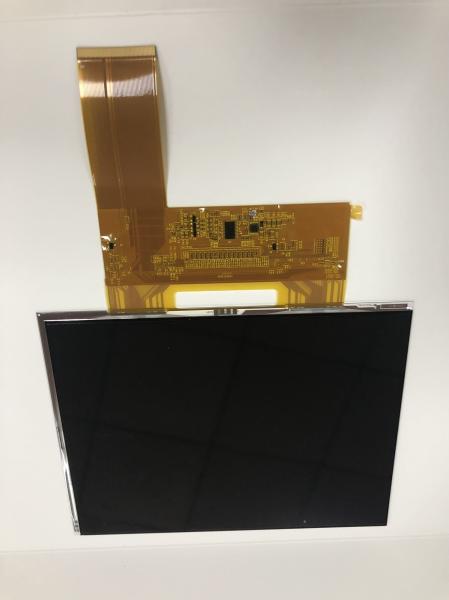

TIANMA TM084SDHG02 Application Details
| Basic Detail : | Manufacturer | | Model Name | TM084SDHG02 |
|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - |
| Panel Size | 8.4 inch | Designed For | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
|---|
TIANMA TM084SDHG02 Optical Details
| Basic Information : | Luminance | 330 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|
| Good View at | 12 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.310 | Support Color | 262K/16.7M (6-bit / 6-bit + Dithering) |
|---|
| Color Temperature | 7525K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 72% coverage |
|---|
| Adobe RGB | 55% coverage | DCI-P3 | 54% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM084SDHG02 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|
| Dot Pitch(W×H) | 0.071×0.213 mm | Pixel Pitch(W×H) | 0.213×0.213 mm [119PPI] |
| Physical Size : | Active Viewing | 170.4(W)×127.8(H) mm | Overall Dim. | 189.75(W)×149.4(H) mm |
|---|
| Bezel Opening | 173.0(W)×130.8(H) mm | Overall Depth | 4.8 (Typ.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
|---|
| Aspect Ratio(W:H) | 4:3 | Shape Style | |
| Fixation : | Without |
|---|
| Other Detail : | Mass | 245g (Typ.) | Surface | Antiglare |
|---|
TIANMA TM084SDHG02 Electronics Details
| Refresh Rate : | 60Hz |
|---|
| Reverse Scan : | Yes (U/D, L/R) |
|---|
| Driver IC : | Built-in NT51008B + NT52002 |
|---|
| Time Controller (T-CON) : | Embedded T-CON |
|---|
TIANMA TM084SDHG02 Interface Details
| Signal Electrical : | Input Current | TBD | Input Voltage | 3.3V (Typ.) |
|---|
| Consumption | 660mW (Typ.) | Signal Interface | Parallel RGB (1 ch, 6/8-bit) |
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 3.0V≤VIH≤3.6V |
|---|
| Interface Features : | Position | - | Physical Type | FPC |
|---|
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment  |
|---|
| | 1 pcs | 0.5 mm | 60 pins |
TIANMA TM084SDHG02 Lightting Details
Lamp Features: Lamp Shape Array Lamp Type WLED Position Edge light
type
Exchange - Amount 3S7P Life 30K(Typ.) (Hours)
Lamp Electrical : Input Current 180/225mA (Typ./Max.) Input Voltage
9.6V (Typ.)
Consumption 1.73W (Typ.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin
Assignment
JST BHSR-02VS-1 1 pcs 3.5 mm 2 pins BLE-2PINS-AC
Backlight Driver : No
which was released out on 11 25 2015, TM084SDHG02 supports display
800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels
are arranged in RGB Vertical Stripe. As for mechanical detail, it
features active area of 170.4(W)×127.8(H) mm, outline size of
189.75(W)×149.4(H) mm, viewing area size of 173.0(W)×130.8(H) mm,
with surface treament of Antiglare, net weight of 245g (Typ.). As a
TN, Normally White, Transmissive LCM product, TM084SDHG02 can
provides 330 cd/m² display brightness 500:1 transimissive contrast
ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view
direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms.
Gray scale or the brightness of the sub-pixel is determined with a
6-bit / 6-bit + Dithering gray scale signal for each dot, thus
presenting a palette of 262K/16.7M colors, also with performance of
color gamut 50% (NTSC).
