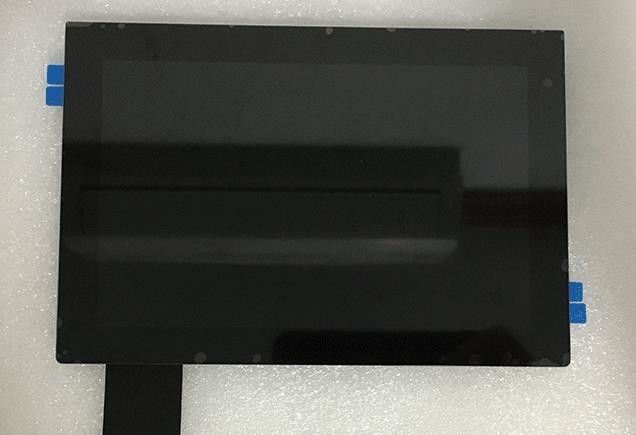

WXGA 251PPI 350nits Tianma LCD Screen RGB 800×1280 TM060JVZG02

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM060JVZG02
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	600PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

WXGA 251PPI 350nits Tianma LCD Screen RGB 800×1280 TM060JVZG02

TIANMA TM060JVZG02 Application Details

Basic Information :	Brand		Model	TM060JVZG02
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	6.0"	Alias	-
Environment :	Storage Temp.	-30 ~~ 80 °C	Operating Temp.	-20 ~~ 70 °C
Environment :	RoHS		Vibration	2.0G (19.6 m/s²)
Typical Features :
Remarks :	White Cover PCAP: GG, 5points, Optical banding

TIANMA TM060JVZG02 Mechanical Details

Pixel Features :	Resolution	800(RGB)×1280, WXGA	Dot Pitch(mm)	0.03365×0.10095 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.10095×0.10095 (H×V) [251PPI]
Mechanical Size :	Active Area(mm)	80.76(H) × 129.216(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	104.16(H) × 152.62(V)	Depth(mm)	4.65/6.5 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	10:16 (H:V)	Orientation	Portrait type
Touch Panel :	Touch Points	5 points	Touch Panel	PCAP
Touch Panel :	TP Controller	With touch controller	Touch Signal	I²C
Other Spec :	Weight	TBD	Treatment	Antiglare (Haze 1%)
Other Spec :	Panel Cover	With Strengthened Cover Glass

TIANMA TM060JVZG02 Optical Details

Basic Information :	Luminance(cd/m²)	350 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	SFT, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.308; Y:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6757K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	68%	sRGB	90% coverage
	Adobe RGB	69% coverage	DCI-P3	70% coverage
	Rec.2020	51% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM060JVZG02 Interface Details

Signal Electrical :	Voltage Supply	1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE)		Current Supply	-
Signal Electrical :	Consumption	151/230mW (Typ./Max.)
Signal Type :	MIPI (4 data lanes)			Signal Voltage	-
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			1 pcs	45 pins	0.5 mm

TIANMA TM060JVZG02 Backlight Details

Backlight Features:	Shape	2 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	8S2P	Life Time	30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	24V (Typ.)		Current Supply	20±2mA
Lamp Electrical :	Consumption	1.02/1.2W (Typ./Max.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No

TIANMA TM060JVZG02 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	48 pcs / box	-	395×290×315 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
