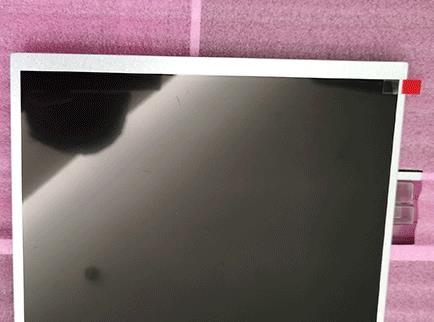

1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40

Ask Lasest Price
Brand Name :	AVIC
Model Number :	TM097TDH02-40
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	300PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40

AVIC TM097TDH02-40 Application Details

Basic Info :

Panel Brand

Panel Model

TM097TDH02-40

Diagonal Size

9.7"

Application

Panel Type

a-Si TFT-LCD , LCM

Model Alias

Reliability :

Operating Temp.

-20 ~ 70 °C

Storage Temp.

-30 ~ 80 °C

RoHS State

Vibration Rating

Specific Features :

AVIC TM097TDH02-40 Mechanical Details

Pixel Features :

Pixel Format

1024(RGB)×768, XGA

Dot Pitch

0.064×0.192 mm (H×V)

Configuration

RGB Vertical Stripe

Pixel Pitch

0.192×0.192 mm (H×V) [132PPI]

Mechanical Size :

Display Area

196.608×147.456 mm (H×V)

Outline Dim.

200.91×152.27 mm (H×V)

Outline Dim.

210.21×166.3 mm (H×V)

Outline Depth

3.28/5.85 (Typ./Max.) mm

Outline Features :

Form Factor

Flat Rectangle

Orientation

Landscape type

Aspect Ratio

4:3 (H:V)

Shape Style

Holes & Brackets :

Face mounting holes (6 pcs) on left, right slugs

Other Features :

Weight

200g (Typ.)

Surface

Hard coating

AVIC TM097TDH02-40 Optical Details

Basic Information :

Brightness

350 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Viewing Angle

70/60/70/70 (Typ.)(CR≥10)

Optical Mode

TN, Normally White, Transmissive

Viewing Direction

3 o'clock

Response Time

20 (Typ.)(Tr+Td) ms

Color Performance :

Chromaticity

Wx:0.311; Wy:0.316

Color Numbers

262K (6-bit)

Color Temperature

6720K

Uniformity

1.33 (Typ.)(9 points)

1931 Color Gamlt :

NTSC Ratio

51%

sRGB

71% coverage

Adobe RGB

53% coverage

DCI-P3

53% coverage

Rec.2020

38% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AVIC TM097TDH02-40 Electronics Details

Frame Frequency :

60Hz

Reverse Scan :

Yes (U/D, L/R)

Power Consumption :

3.198W (Typ.)

AVIC TM097TDH02-40 Backlight Details

Back-light Features :

Lamp Type

WLED

Amount

6S6P

Life Time

30K(Typ.) Hours

Replacement

Lamp Shape

6 strings

Position

Edge light type

Lamp Electrical :

Voltage Input

19.2V (Typ.)

Current Input

20mA (Typ.)

Consumption

2.304W (Typ.)

Interface Features :

Type

Included in panel signal interface

Position

Lamp Driver

AVIC TM097TDH02-40 Interface Details

Signal Systerm :

LVDS (1 ch, 6-bit)

Logic Voltage

Signal Electrical :

Voltage Input

3.3V (Typ.)

Current Input

271mA (Typ.)

Consumption

894.3mW (Typ.)

Interface Features :

Type

Connector

Position

Connector Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

I-PEX

20474-030E-11

0.4 mm

30 pins

1 pcs

AVIC TM097TDH02-40 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	60 pcs / box	19.3±0.97 Kgs	565×483×321 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
