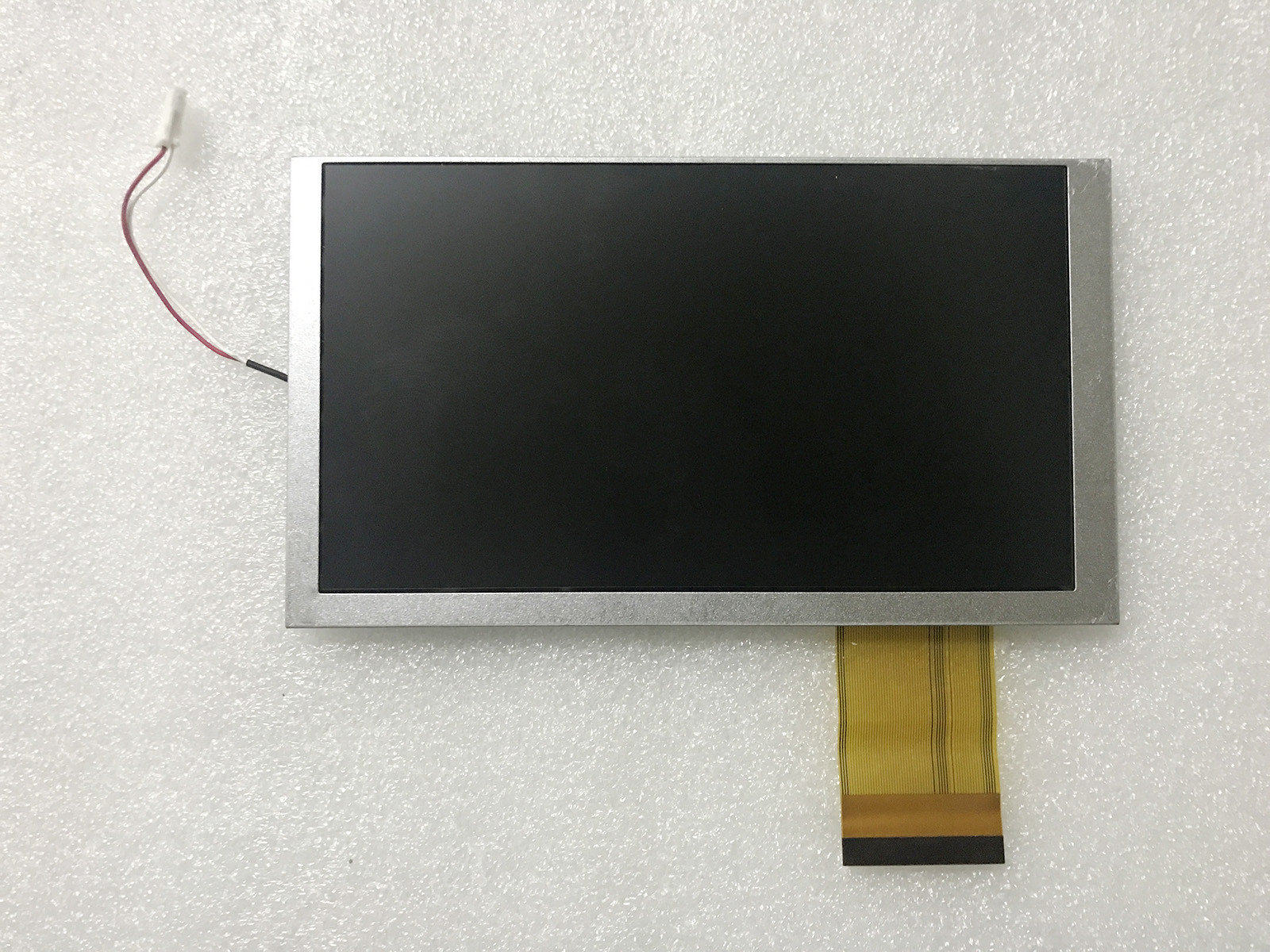

6.2" 800×480 RGB 400nits Tianma LCD Display TM062RDH02 75/75/60/70 (Typ.)(CR≥10)

TIANMA TM062RDH02 Application Details

Basic Detail :

Manufacturer

Model Name

TM062RDH02

Panel Type

a-Si TFT-LCD , LCM

Another Name

Panel Size

6.2 inch

Designed For

Maximum Ratings :

OP Temperature

-20 ~ 70 °C

ST Temperature

-30 ~ 80 °C

RoHS

Vibration Level

Features :

Remarks :

DE/SYNC Mode Selectable.

TIANMA TM062RDH02 Optical Details

Basic Information :

Luminance

400 cd/m² (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Good View at

12 o'clock

Response Speed

20/30 (Typ./Max.)(Tr+Td) ms

Viewing Angle

75/75/60/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Color Performance :

Chromaticity

Wx:0.300; Wy:0.325

Support Color

262K/16.2M (6-bit / 6-bit + Dithering)

Color Temperature

7274K

White Variation

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamlt :

NTSC Ratio

48%

sRGB

67% coverage

Adobe RGB

51% coverage

DCI-P3

50% coverage

Rec.2020

36% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM062RDH02 Mechanical Details

Pixel Features :

Number of Pixel

800(RGB)×480, WVGA

Arrangement

RGB Vertical Stripe

Dot Pitch(W×H)

0.05725×0.161 mm

Pixel Pitch(W×H)

0.17175×0.161 mm [150PPI]

Physical Size :

Active Viewing

137.4(W)×77.28(H) mm

Overall Dim.

155.2(W)×88.2(H) mm

Bezel Opening

140.7(W)×80.4(H) mm

Overall Depth

4.9±0.3 mm

Outline Features :

Form Shape

Flat Rectangle

Orientation

Landscape type

Aspect Ratio(W:H)

16:9

Shape Style

Other Detail :

Mass

TBD

Surface

Antiglare

TIANMA TM062RDH02 Electronics Details

Reverse Scan :

Yes (U/D, L/R)

Time Controller (T-CON) :

Embedded T-CON

TIANMA TM062RDH02 Interface Details

Signal Electrical :

Input Current

10.0/35.0/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)

Input Voltage

3.3/9.84/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Consumption

Signal Interface

TTL (1 ch, 6/8-bit)

Logic Voltage :

0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC

Interface Features :

Position

Physical Type

FPC

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

0.5 mm

60 pins

1 pcs

TIANMA TM062RDH02 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

3S8P

Position

Edge light type

Exchange

Lamp Shape

Array

Lamp Life

10K(Min.) (Hours)

Lamp Electrical :

Input Voltage

9.6V (Typ.)

Input Current

160/200mA (Typ./Max.)

Consumption

1.536/1.920W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

BHSR-02VS-1

3.5 mm

2 pins

1 pcs

BLE-2PINS-AC

Backlight Driver :

TIANMA TM062RDH02 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	50 pcs / box	TBD	530×350×250 mm
