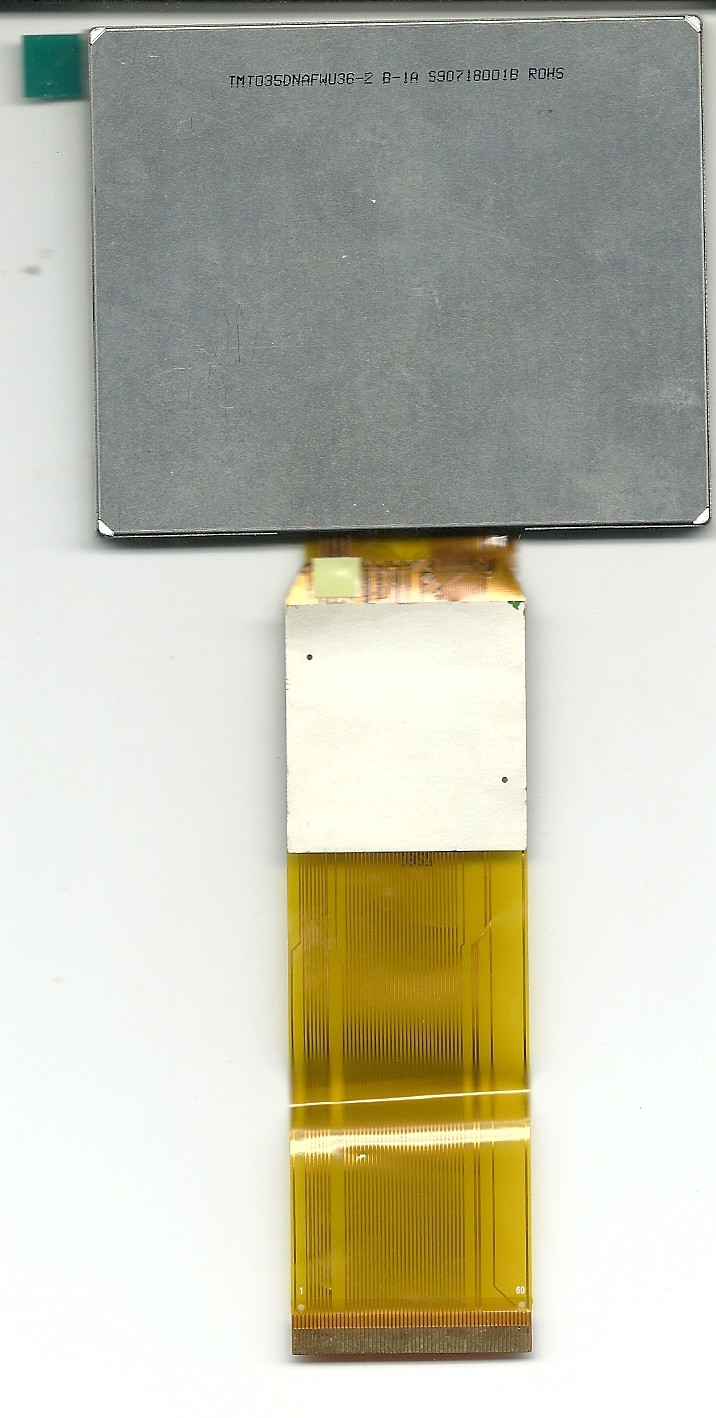

    TM035KBZ04 TIANMA 3.5" 320(RGB)×240 150 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM035KBZ04
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 1000PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    TM035KBZ04 TIANMA 3.5" 320(RGB)×240 150 cd/m² INDUSTRIAL LCD DISPLAY

    TIANMA TM035KBZ04 Application Features

    Basic Information :BrandModelTypeModel Alias
    TM035KBZ04a-Si TFT-LCD , LCM-
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    -20 ~ 70 °C-30 ~ 80 °C-
    Designed For :


    Specific Features :


    Remarks :3 in 1 FPC

    TIANMA TM035KBZ04 Mechanical Features

    Panel Size :3.5 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    320(RGB)×240, QVGARGB Vertical Stripe0.073×0.219 mm0.219×0.219 mm [115PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    70.08×52.56 mm73.1×55.6 mm78.2×65 mm4.4 (Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle4:3 (W : H)Landscape type
    Touchscreen :Touch PointsTP ControllerSignal TypeTouch Tech
    -Without touch controller-4-wire Resistive Touch
    Other Features :Panel CoverWeightSurface
    -TBD

    TIANMA TM035KBZ04 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    150 cd/m² (Min.)TN, Normally White, Transmissive200:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    65/65/50/45 (Typ.)(CR≥10)12 o'clock25/25 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6239K16.7M (8-bit)X:0.320; Y:0.310
    Luminance Variation :1.25 (Max.)(9 points)

    TIANMA TM035KBZ04 Electronics Features

    Frame Rate :60Hz
    Reverse Scan :No
    D-IC Detail :COG Built-in NT39016D
    Time Controller (T-CON) :Embedded T-CON

    TIANMA TM035KBZ04 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    30mA (Max.)3.3V (Typ.)-
    Voltage for Display Signals :0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
    Interface Features :PositionTypeInterface
    -FPCParallel RGB (1 ch, 8-bit) + SPI
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    1 pcs0.5 mm60 pins

    TIANMA TM035KBZ04 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type1 string6S1P--
    WLED Electrical :Current InputVoltage InputConsumption
    20/23mA (Typ./Max.)19.8±0.3V
    Interface Features :PositionTypeWLED Driver
    -Included in panel signal interfaceNo

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
