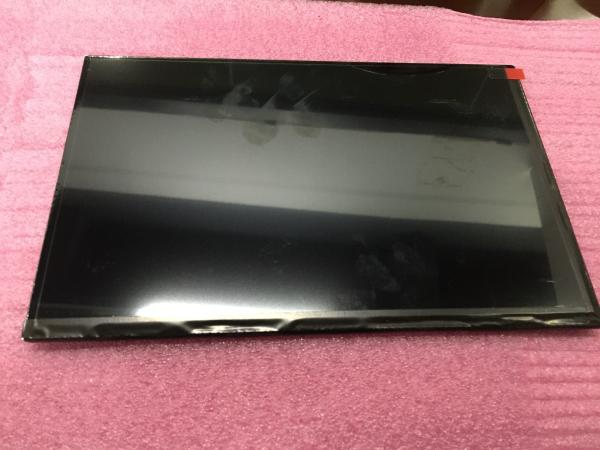

    TM101JDHG38 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM101JDHG38
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 1000PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    TM101JDHG38 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY


    TIANMA TM101JDHG38 Application Features

    Basic Information :Brand NameModel NameTypeModel Alias
    TM101JDHG38a-Si TFT-LCD , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    -20 ~ 70 °C-30 ~ 80 °C

    TIANMA TM101JDHG38 Mechanical Features

    Screen Size :10.1"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    1280(RGB)×800, WXGARGB Vertical Stripe0.0565×0.1695 mm0.1695×0.1695 mm [149PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    216.96×135.6 mm219.96×138.6 mm231.22×150.6 mm4.4/6.6 (Typ./Max.) mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle16:10Landscape type
    Other Spec :MassPanel CoverSurface Treatment
    276g-Hard coating
    Holes & Brackets :Without

    TIANMA TM101JDHG38 Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    400 cd/m² (Typ.)SFT, Normally Black, Transmissive800:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    Symmetry85/85/85/85 (Typ.)(CR≥10)25 (Typ.)(Tr+Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    7236K262K/16.7M (6-bit / 8-bit)X:0.303; Y:0.315
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    55%77%58%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    57%41%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Uniformity :1.25/1.33 (Typ./Max.)(9 points)

      TIANMA TM101JDHG38 Electronics Features

      Refresh Rate :60Hz
      Reverse Scan :No
      Driver IC List:COG Built-in ST5821CA*3 + ST5084CA*1

      TIANMA TM101JDHG38 Backlight Features

      Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
      WLEDEdge light type30K(Typ.)6S5PArray-
      Interface Features :WLED Driver StatePhysical TypeInterface Position
      With LED DriverIncluded in signal interface-
      WLED Driver Electrical :Input VoltageInput CurrentPower Consumption
      5.5/12.0/21.0V (Min./Typ./Max.)322mA (Typ.)3.86W (Typ.)

      TIANMA TM101JDHG38 Interface Features

      Signal Electrical :Input VoltageInput CurrentPower Consumption
      3.3V (Typ.)280mA (Typ.)924mW (Typ.)
      Interface Features :Signal TypePhysical TypeInterface Position
      LVDS (1 ch, 6/8-bit)Connector
      Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
      JAEHD1S040HA11 pcs40 pins0.5 mm
