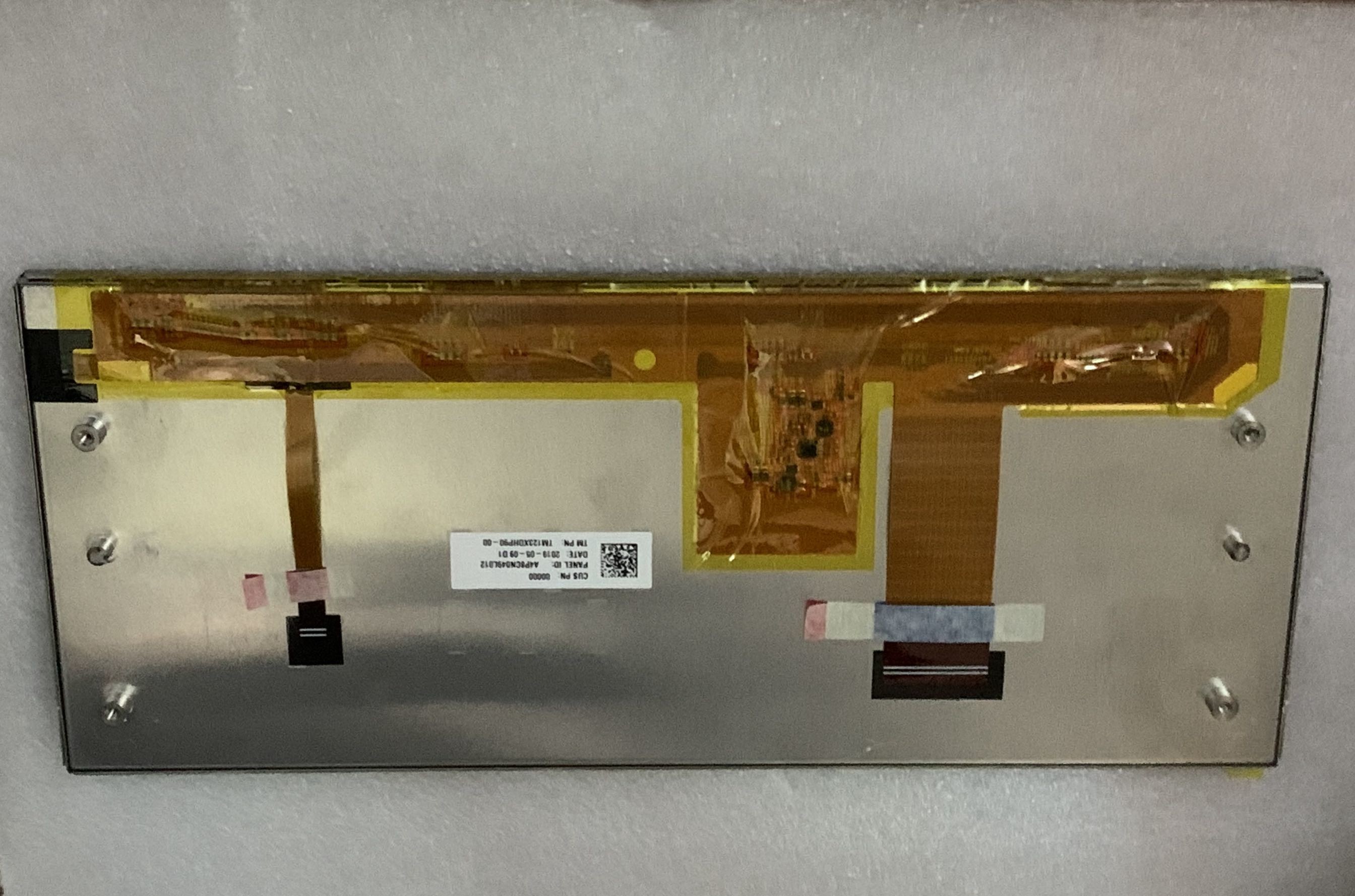

TM123XDHP90 TIANMA 12.3" 1920(RGB)×720 1000 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM123XDHP90
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	1000PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

TM123XDHP90 TIANMA 12.3" 1920(RGB)×720 1000 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TM123XDHP90 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TM123XDHP90	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-40 ~ 85 °C	-40 ~ 95 °C	3.0G (29.4 m/s²)
Designed For :
Specific Features :

TIANMA TM123XDHP90 Mechanical Features

Panel Size :	12.3 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×720	RGB Vertical Stripe	0.05075×0.15225 mm	0.15225×0.15225 mm [166PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	292.32×109.62 mm	-	311×130 mm	8.5/15.7 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	8:3 (W : H)	Landscape type
Fixation :	Rear mounting Pole (4 pcs)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	490g (Typ.)	Antiglare (Haze 28%)

TIANMA TM123XDHP90 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	1000 cd/m² (Typ.)	SFT, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	-	Symmetry	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6638K	16.7M (8-bit)	X:0.310; Y:0.330
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	75%	98%	76%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	78%	56%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25 (Max.)(15 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable

TIANMA TM123XDHP90 Electronics Features

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

TIANMA TM123XDHP90 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	460/600mA (Typ./Max.)		3.3V (Typ.)			-
Interface Features :	Position	Type	Interface
Interface Features :	-	FPC	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	50 pins

TIANMA TM123XDHP90 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	4 strings	10S4P	10K(Min.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	90mA (Typ.)		27/30/34V (Min./Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	FPC	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail			1 pcs	0.5 mm	10 pins

TIANMA TM123XDHP90 Packing Features

Package Carton :	Amount	Weight	Carton Size
Package Carton :	16 pcs / box	-	600×440×280 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
